LB-602BK2 - Double Digits LED Numeric Display

Download the LB-602BK2 datasheet PDF. This datasheet also covers the LB-602AK2 variant, as both devices belong to the same double digits led numeric display family and are provided as variant models within a single manufacturer datasheet.

Features

  • 1) The height of a letter is 14.3mm. 2) Dimension is 25.0×19.0×8.0mm. 3) The package of surface color is black. Color of segment is colored in emitting color. (Blue color is only milky white) 4) Each color has anode common and cathode common respectively. 1.3 2.
  • φ1.5 8.0 8.0 3.5Min. 0.5 (2.54) (20.32) Tolerance are ±0.3 unless otherwise noted : zSelection guide Emitting color Common Anode Cathode Red Red Orange Yellow (High brightness) (High brightness) (High brightness) G.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LB-602AK2_ROHM.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LB-602BK2
Manufacturer ROHM
File Size 63.66 KB
Description Double Digits LED Numeric Display
Datasheet download datasheet LB-602BK2 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by ROHM

Part Number Description
LB-602BA2 Double Digits LED Numeric Display
LB-602AA2 Double Digits LED Numeric Display
LB-602AK2 Double Digits LED Numeric Display
LB-602EA2 Double Digits LED Numeric Display
LB-602EK2 Double Digits LED Numeric Display

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

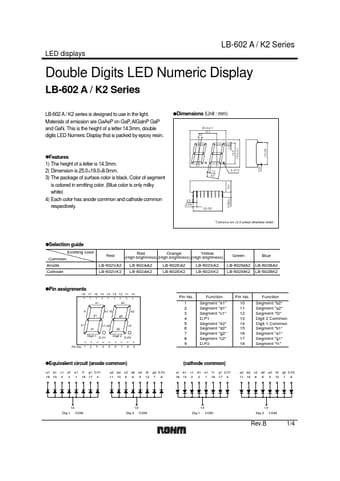

LED displays LB-602 A / K2 Series Double Digits LED Numeric Display LB-602 A / K2 Series LB-602 A / K2 series is designed to use in the light. Materials of emission are GaAsP on GaP, AlGalnP GaP and GaN. This is the height of a letter 14.3mm, double digits LED Numeric Display that is packed by epoxy resin. zDimensions (Unit : mm) 25.0±0.1 12.5 10° 0.25 (15.24) 1.3 14.3 19.0±0.1 zFeatures 1) The height of a letter is 14.3mm. 2) Dimension is 25.0×19.0×8.0mm. 3) The package of surface color is black. Color of segment is colored in emitting color. (Blue color is only milky white) 4) Each color has anode common and cathode common respectively. 1.3 2−φ1.5 8.0 8.0 3.5Min. 0.5 (2.54) (20.32) Tolerance are ±0.
