BM6204FS - 3-Phase Brushless Fan Motor Driver

Name: BM6204FS
SKU: BM6204FS-1085377

ROHM

📥 Download Datasheet

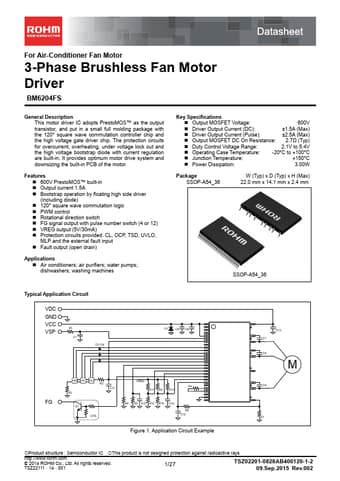

BM6204FS Datasheet Preview — Preview of BM6204FS PDF

Datasheet Details

Part number	BM6204FS
Manufacturer	ROHM
File Size	956.62 KB
Description	3-Phase Brushless Fan Motor Driver
Datasheet	BM6204FS-ROHM.pdf

BM6204FS Product details

Description

This motor driver IC adopts PrestoMOS™ as the output transistor, and put in a small full molding package with the 120° square wave commutation controller chip and the high voltage gate driver chip.

Features

600V PrestoMOS™ built-in.
Output current 1.5A.
Bootstrap operation by floating high side driver (including diode).
120° square wave commutation logic.
PWM control.
Rotational direction switch.
FG signal output with pulse number switch (4 or 12).
VREG output (5V/30mA).
Protection circuits provided: CL, OCP, TSD, UVLO, MLP and the external fault input.
Fault output (open drain).
