BD9584F - EARTH LEAKAGE CURRENT DETECTOR

BD9584F Description

Datasheet EARTH LEAKAGE CURRENT DETECTOR EARTH LEAKAGE CURRENT DETECTOR IC BD9584F *General .
BD9584F integrates leakage detector and amplifier.

BD9584F Features

* Small temperature fluctuation and high input sensitivity
* Wide operating temperature range
* Packages SOP8 W(Typ. ) x D(Typ. ) x H(Max. ) 5.00mm x 6.20mm x 1.71mm

BD9584F Applications

* Earth leakage circuit breaker
* Earth leakage circuit relay
* Typical Application Circuit Example Current source Reference voltage output block ○Product structure：Silicon monolithic integrated circuit

📥 Download Datasheet

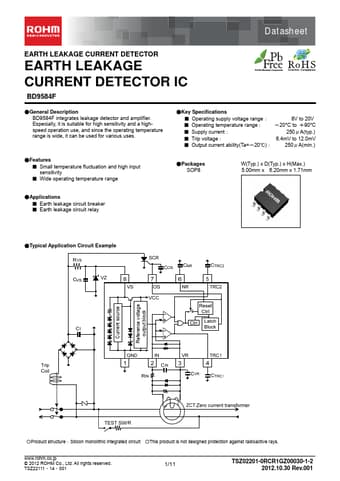

Preview of BD9584F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD9584F
Manufacturer
ROHM ↗
File Size
514.09 KB
Datasheet
BD9584F-ROHM.pdf
Description
EARTH LEAKAGE CURRENT DETECTOR
