BD83070GWL Synchronous Buck-Boost DC/DC Converter

BD83070GWL Description

Datasheet Synchronous Buck-Boost DC/DC Converter with 2 A Switches (VIN = 2.0 V to 5.5 V, 1ch) BD83070GWL General .
The BD83070GWL is a synchronous buck-boost DC/DC convertor providing 3.

BD83070GWL Features

* Synchronous Buck-Boost DC/DC Converter
* Automatic PFM/PWM Transition
* Output Current: Up To 1 A (VIN > 2.7 V, VOUT = 3.3 V)
* Selectable Output Voltage: 2.5 V or 3.3 V
* Efficiency: Up To 95 %
* UVLO Detection: 1.61 V(Max)
* Built-in Thermal, Over Voltage, And Over Cu

BD83070GWL Applications

* Single Cell Li-ion or 3 Cell NiMH Battery-Powered Portable Products
* Tablet Terminal Device
* Smartphone Typical Application Circuit VIN 2.0 V to 5.5 V C1: 10 μF ON OFF Forced-PWM Auto-PFM/PWM L1: 1.5 μH LX1 PVIN VIN LX2 VOUT FB EN VSEL MODE REF GND PGND VOUT 3.3 V (up to 1 A

📥 Download Datasheet

Preview of BD83070GWL PDF

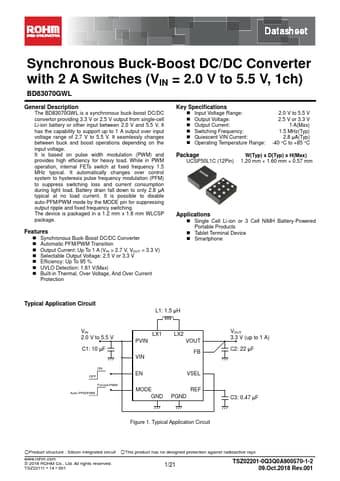

datasheet Preview Page 2 datasheet Preview Page 3
