BD8372EFJ-M, BD8372HFP-M 50V 200mA 1ch Source Driver

BD8372EFJ-M Description

Datasheet Constant Current LED Drivers 50V 200mA 1ch Source Driver for Automotive BD8372HFP-M BD8372EFJ-M General .
BD8372HFP-M and BD8372EFJ-M are LED source drivers capable of withstanding high input voltage (50V MAX).

BD8372EFJ-M Features

* Variable form Constant- Current Source
* H/L Current Setting Switch Control
* LED Open/Short Protection Circuit Integrated
* ISET Open/Short Protection Circuit Integrated
* Overvoltage Mute and Temperature Protection Function Integrated
* Abnormal Output Detection and Outpu

BD8372EFJ-M Applications

* For automotive (Rear lamp, Interior light, etc. ). Basic Appli

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD8372EFJ-M, BD8372HFP-M. Please refer to the document for exact specifications by model.

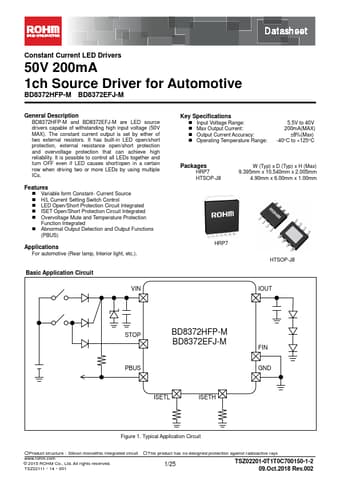

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD8372EFJ-M, BD8372HFP-M
Manufacturer
ROHM ↗
File Size
1.58 MB
Datasheet
BD8372HFP-M-ROHM.pdf
Description
50V 200mA 1ch Source Driver
Note
This datasheet PDF includes multiple part numbers: BD8372EFJ-M, BD8372HFP-M.
Please refer to the document for exact specifications by model.
