DSK12 - SCHOTTKY BARRIER RECTIFIER

Product Overview

RFE

📥 Download Datasheet

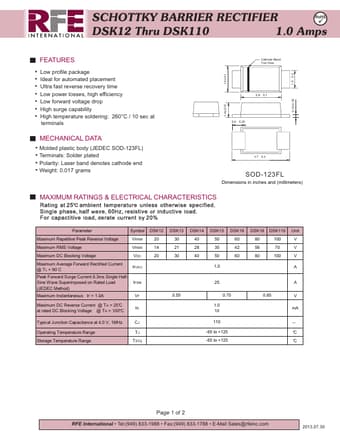

DSK12 SCHOTTKY BARRIER RECTIFIER by RFE - Datasheet Preview — Datasheet preview – DSK12

Datasheet Details

Part number	DSK12
Manufacturer	RFE
File Size	97.43 KB
Description	SCHOTTKY BARRIER RECTIFIER
Datasheet	DSK12 Datasheet
Additional preview pages of the DSK12 datasheet.

Product details

Features

Low profile package.
Ideal for automated placement.
Ultra fast reverse recovery time.
Low power losses, high efficiency.
Low forward voltage drop.
High surge capability.
High temperature soldering: 260°C / 10 sec at terminals 1.4± 0.15 1.9± 0.1 Cathode Band Top View 2.8 0.1 0.6 0.25 0.10-0.30.
