DSK10C - 1.0A Power Rectifier

Product Overview

ON Semiconductor

📥 Download Datasheet

DSK10C 1.0A Power Rectifier by ON Semiconductor - Datasheet Preview — Datasheet preview – DSK10C

Datasheet Details

Part number	DSK10C
Manufacturer	ON Semiconductor
File Size	307.89 KB
Description	1.0A Power Rectifier
Datasheet	DSK10C Datasheet
Note	This datasheet PDF includes multiple part numbers: DSK10C, DSK10B. Please refer to the document for exact specifications by model.

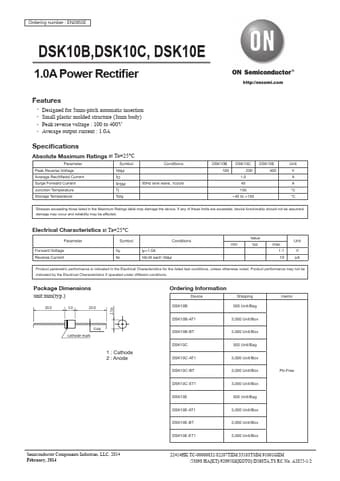

Additional preview pages of the DSK10C datasheet.

Product details

Features

Designed for 5mm-pitch automatic insertion.
Small plastic molded structure (3mm body).
Peak reverse voltage : 100 to 400V.
Average output current : 1.0A Specifications Absolute Maximum Ratings at Ta=25°C Parameter Peak Reverse Voltage Average Recitifiedd Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRM IO IFSM Tj Tstg Conditions 50Hz sine wave, 1cycle DSK10B DSK10C 100 200 1.0 45 150 --40 to +150 DSK10E 400.
