TQP9224 High Linearity 0.25W Small Cell PA

TQP9224 Description

TQP9224 ® High Linearity 0.25 W Small Cell PA General .
The TQP9224 is a high-linearity three-stage power amplifier in a low-cost surface-mount package with on-chip bias control and temperature control circ.

TQP9224 Features

* 2.3 
*  2.4 GHz Frequency Range
* Fully integrated, 3-Stage Power Amplifier
* Internally Matched 50 Ω Input/Output
* 50 dBc ACLR at Pavg = +24 dBm
* 36.7 dB Gain
* 14% PAE at +24 dBm
* 204 mA Quiescent Current
* On-chip

TQP9224 Applications

* The TQP9224 provides 36.7 dB high gain and
* 50 dBc ACLR at +24 dBm linear power using a 20 MHz LTE signal over the 2.3 
*  2.4 GHz frequency range covering 3GPP Bands 30, 40. The TQP9224 integrates three high performance amplifier stages to allow for a compact system design and requir

📥 Download Datasheet

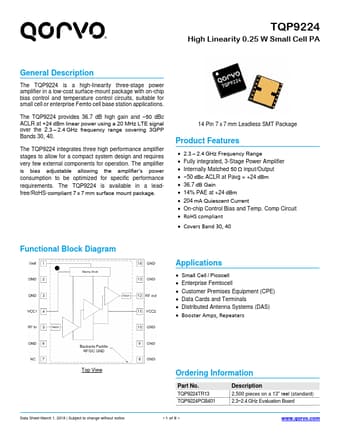

Preview of TQP9224 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TQP9224
Manufacturer
Qorvo
File Size
615.85 KB
Datasheet
TQP9224-Qorvo.pdf
Description
High Linearity 0.25W Small Cell PA
