TQP9059S - Advanced ET/APT-MIPI MMPA

Description

The TQP9059S is a fully matched multimode multiband Power Amplifier Module that supports Quad-band GSM/EDGE, W/CDMA & LTE Bands 1, 2, 3/4, 5, 8, 20, and 26 for both ET and APT operation.

Features

  • ET optimized/ APT compatible.
  • Quad-Band Linear GSM/EDGE.
  • UMTS Bands 1, 2, 3, 4, 5, 8, 20, & 26.
  • WCDMA has 2 modes.
  • HPM & LPM.
  • Input power controlled.
  • 8PSK.
  • Vramp controlled output power.
  • GMSK.
  • Vramp optimized bias in 8PSK for linearity and current consumption.
  • Integrated band distribution switches.
  • HBT / CuFlip® PA Technology.
  • 50 Ohm input and output impedance.
  • Lead-free 260°C/RoHS/Halogen-free 42-Pin 5x7x1 mm Pa.

📥 Download Datasheet

Datasheet Details

Part number TQP9059S
Manufacturer TriQuint Semiconductor
File Size 93.70 KB
Description Advanced ET/APT-MIPI MMPA
Datasheet download datasheet TQP9059S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TQP9107 600MHz - 960MHz 2-stage Power Amplifier qorvo
TQP9111 2-Watt Power Amplifier qorvo
TQP9224 High Linearity 0.25W Small Cell PA Qorvo
TQP9418 High Linearity 0.5W Small Cell PA Qorvo
TQP369182 Gain Block Qorvo

Other Datasheets by TriQuint Semiconductor

Part Number Description
TQP9059 Advanced ET/APT-MIPI MMPA
TQP9051 MIPI ET/APT MMPA
TQP9058H Multi-Mode / Multi-Band Power Amplifier Module
TQP9107 2-stage Power Amplifier
TQP9108 2-stage Power Amplifier

Full PDF Text Transcription

Click to expand full text

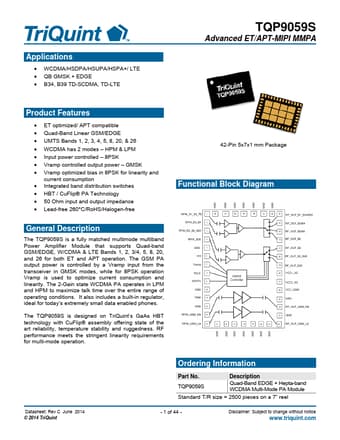

Applications  WCDMA/HSDPA/HSUPA/HSPA+/ LTE  QB GMSK + EDGE  B34, B39 TD-SCDMA, TD-LTE TQP9059S Advanced ET/APT-MIPI MMPA Product Features  ET optimized/ APT compatible  Quad-Band Linear GSM/EDGE  UMTS Bands 1, 2, 3, 4, 5, 8, 20, & 26  WCDMA has 2 modes – HPM & LPM  Input power controlled – 8PSK  Vramp controlled output power – GMSK  Vramp optimized bias in 8PSK for linearity and current consumption  Integrated band distribution switches  HBT / CuFlip® PA Technology  50 Ohm input and output impedance  Lead-free 260°C/RoHS/Halogen-free 42-Pin 5x7x1 mm Package Functional Block Diagram General Description The TQP9059S is a fully matched multimode multiband Power Amplifier Module that supports Quad-band GSM/EDGE, W/CDMA & LTE Bands 1, 2, 3/4, 5, 8, 20, and 26 for both ET and A
