QPA2575 - 3 Watt Power Amplifier

Datasheet Summary

Description

Data Sheet Rev.

© 2023 Qorvo US, Inc.

All rights reserved.

 38 GHz 3 Watt Power Amplifier

Features

  • Frequency Range: 32  .
  •  38 GHz.
  • PSAT (PIN=23 dBm): 35 dBm.
  • PAE (PIN=23 dBm): 16 %.
  • Small Signal Gain: 19 dB.
  • Return Loss: 12 dB.
  • Bias: Pulsed VD = 6 V, IDQ = 2.1 A.
  • Package Dimensions: 7.0 x 8.0 x 1.465 mm Performance is typical across frequency. Please reference electrical specification table and data plots for more details. Functional Block Diagram.

📥 Download Datasheet

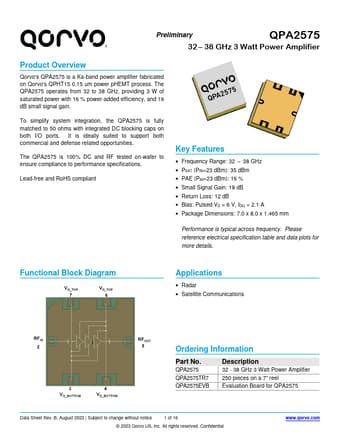

Datasheet preview – QPA2575

Datasheet Details

Part number QPA2575
Manufacturer Qorvo
File Size 1.84 MB
Description 3 Watt Power Amplifier
Datasheet download datasheet QPA2575 Datasheet
