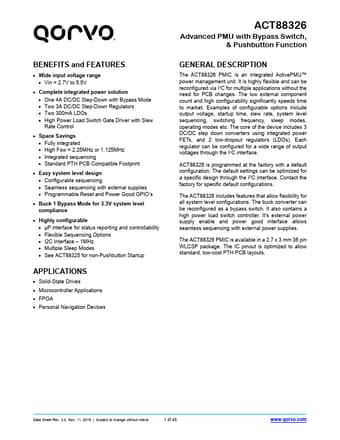

Additional preview pages of the ACT88326 datasheet.

ACT88326 Product details

Description

The ACT88326 PMIC is an integrated ActivePMU™ power management unit.

Features

Wide input voltage range.
Vin = 2.7V to 5.5V.
Complete integrated power solution.
One 4A DC/DC Step-Down with Bypass Mode.
Two 3A DC/DC Step-Down Regulators.
Two 300mA LDOs.
High Power Load Switch Gate Driver with Slew Rate Control.
Space Savings.
Fully integrated.
High Fsw = 2.25MHz or 1.125MHz.
Integrated sequencing.
Standard PTH PCB Compatible Footprint.
Easy system level design.
Configurable sequencing.
Seamless sequ.
