ACT8810, ACT8810_Active - Eight Channel ActivePath Power Management IC

Active-Semi

📥 Download Datasheet

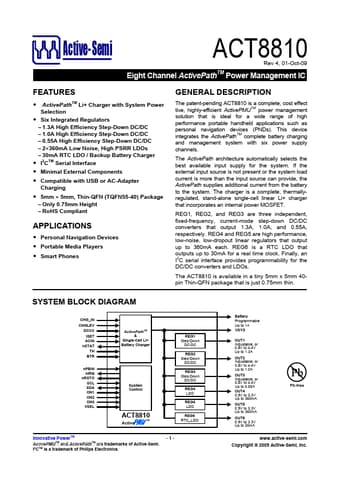

ACT8810 Datasheet Preview — This datasheet PDF includes multiple part numbers: ACT8810, ACT8810_Active. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ACT8810, ACT8810_Active
Manufacturer	Active-Semi
File Size	902.07 KB
Description	Eight Channel ActivePath Power Management IC
Datasheet	ACT8810_Active-Semi.pdf
Note	This datasheet PDF includes multiple part numbers: ACT8810, ACT8810_Active. Please refer to the document for exact specifications by model.

ACT8810 Product details

Description

The patent-pending ACT8810 is a complete, cost effect tive, highly-efficient ActivePMUTM power management solution that is ideal for a wide range of high performance portable handheld applications such as personal navigation devices (PNDs).

Features

ActivePathTM Li+ Charger with System Power Selection.
Six Integrated Regulators.
1.3A High Efficiency Step-Down DC/DC.
1.0A High Efficiency Step-Down DC/DC.
0.55A High Efficiency Step-Down DC/DC.
2×360mA Low Noise, High PSRR LDOs.
30mA RTC LDO / Backup Battery Charger.
I2CTM Serial Interface.
Minimal External Components ACT8810 Rev 4, 01-Oct-09 Eight Channel ActivePathTM Power Management IC.
