KT6368A - Controller

Product Overview

Datasheet Details

Part number	KT6368A
Manufacturer	QingYue
File Size	513.50 KB
Description	Controller
Datasheet	KT6368A Datasheet
Additional preview pages of the KT6368A datasheet.

Product details

Description

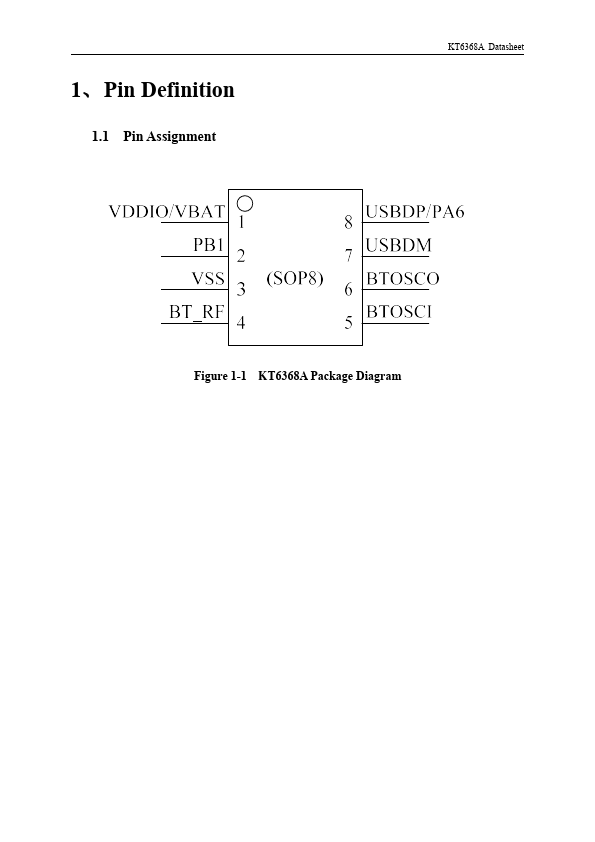

Table 1-1 KT6368A Pin Description PIN Name NO.VBAT 1 VDDIO 2 PB1 3 VSS 4 BT_RF 5 BTOSCI 6 BTOSCO 7 USBDM USBDP 8 PA6 I/O Type P P I/O P / I O I/O I/O I/O Drive (mA) Function / / GPIO (pull up) / USB Negative Data (pull down) USB Positive Data (pull down) GPIO Other Function Battery Power Supply IO Power 3.3v Long Press Reset； ADC5：ADC Input Channel 5; UART0RXB：Uart0 Data In(B); Ground BT Antenna BT OSC In BT OSC Out IIC_SDA_A：IIC SDA(A); SPI2_DOB：SPI2 Data Out(B); ADC14：ADC Input Chan

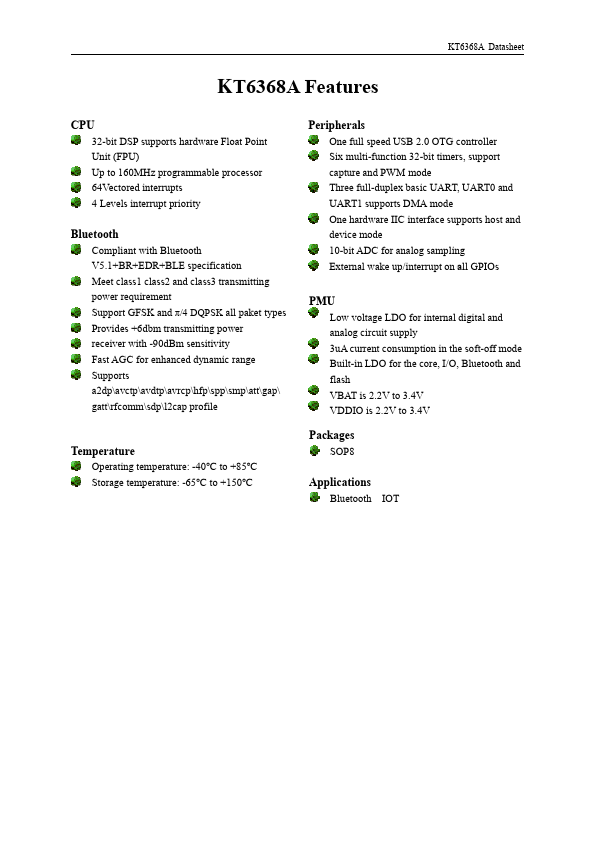

Features

CPU 32-bit DSP supports hardware Float Point Unit (FPU) Up to 160MHz programmable processor 64Vectored interrupts 4 Levels interrupt priority Bluetooth Compliant with Bluetooth V5.1+BR+EDR+BLE specification Meet class1 class2 and class3 transmitting power requirement Support GFSK and π/4 DQPSK all paket types Provides +6dbm transmitting power receiver with -90dBm sensitivity Fast AGC for enhanced dynamic range Supports a2dpavctpavdtpavrcphfpsppsmpattgap gattrfcommsdpl2cap profile Temperature Op.
