PA5711 - High Voltage LED Driver

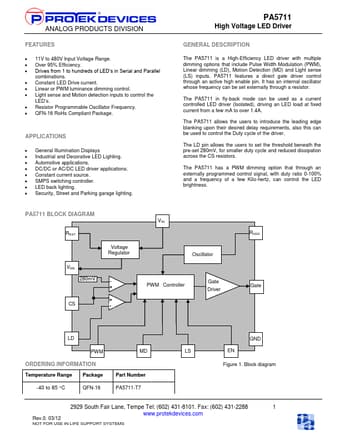

The PA5711 by Protekdevices is a High Voltage LED Driver. Below is the official datasheet preview.

Datasheet Details

Part number	PA5711
Manufacturer	Protekdevices
File Size	520.55 KB
Description	High Voltage LED Driver
Datasheet	PA5711_Protekdevices.pdf
Additional preview pages of the PA5711 datasheet.

PA5711 Product details

Description

The PA5711 is a High-Efficiency LED driver with multiple dimming options that include Pulse Width Modulation (PWM), Linear dimming (LD), Motion Detection (MD) and Light sense (LS) inputs.

Features

11V to 480V Input Voltage Range. Over 95% Efficiency. Drives from 1 to hundreds of LED’s in Serial and Parallel combinations. Constant LED Drive current. Linear or PWM luminance dimming control. Light sense and Motion detection inputs to control the LED’s. Resistor Programmable Oscillator Frequency. QFN-16 RoHs Compliant Package. High Voltage LED Driver.
