PA5001.222NLT - SMT Power Inductors

Download the PA5001.222NLT datasheet PDF (PA5001.101NLT included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for smt power inductors.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PA5001.101NLT-Pulse.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PA5001.222NLT
Manufacturer Pulse
File Size 690.53 KB
Description SMT Power Inductors
Datasheet download datasheet PA5001.222NLT Datasheet

📁 Similar Datasheet

  • PA50 - Power Operational Amplifier (APEX)
  • PA502FMG - P-Channel MOSFET (UNIKC)
  • PA502FMG - P-Channel MOSFET (NIKO-SEM)
  • PA502FMG - P-Channel 20V MOSFET (VBsemi)
  • PA503EMG - P-Channel Field Effect Transistor (NIKO-SEM)
  • PA504EM - P-Channel MOSFET (UNIKC)
  • PA504EV - P-Channel MOSFET (UNIKC)
  • PA50A - Power Operational Amplifier (APEX)
  • PA51 - Power Operational Amplifier (APEX)
  • PA51A - Power Operational Amplifier (APEX)
Other Datasheets by Pulse

Full PDF Text Transcription

Click to expand full text

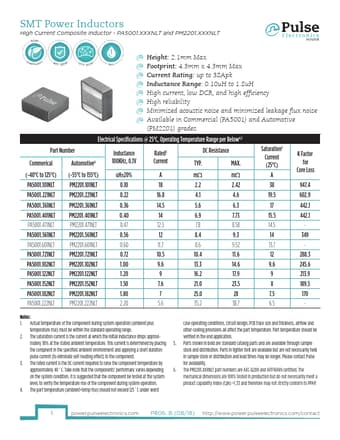

SMT Power Inductors High Current Composite Inductor - PA5001.XXXNLT and PM2201.XXXNLT Height: 2.1mm Max Footprint: 4.3mm x 4.3mm Max Current Rating: up to 38Apk Inductance Range: 0.10uH to 1.8uH High current, low DCR, and high efficiency High reliability Minimized acoustic noise and minimized leakage flux noise Available in Commercial (PA5001) and Automotive (PM2201) grades Electrical Specifications @ 25°C, Operating Temperature Range per Below4,5 Part Number Commerical (-40°C to 125°C) Automotive6 (-55°C to 155°C) Inductance 100KHz, 0.1V uH±20% Rated3 Current A DC Resistance TYP. MAX. mΩ mΩ Saturation2 Current (25°C) A K Factor for Core Loss PA5001.101NLT PM2201.101NLT 0.10 18 2.2 2.42 38 947.4 PA5001.221NLT PM2201.221NLT 0.22 16.8 4.1 4.6 19.5 602.9 PA5001.
