PLC03-6 Datasheet (Protek Devices) - STEERING DIODE / TVS ARRAY COMBO

PLC03-6, STEERING DIODE / TVS ARRAY COMBO

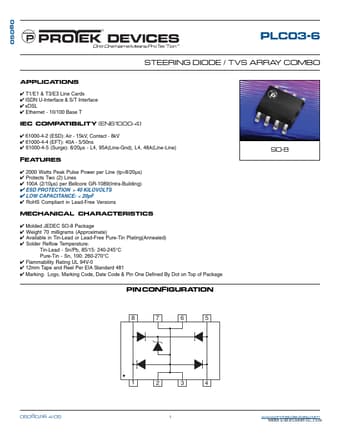

05080 PLC03-6 Only One Name Means ProT ek’Tion™ STEERING DIODE / TVS ARRA Y COMBO APPLICA TIONS ✔ T1/E1 & T3/E3 Line Cards ✔ ISDN U-Interface & S/T Interface ✔ xDSL ✔ Ethernet - 10/100 Base T IEC COMPA TIBILITY (EN61000-4) ✔ 61000-4-2 (ESD): Air - 15kV, Contact - 8kV ✔ 61000-4-4 (EFT): 40A - 5/50ns ✔ 61000-4-5 (Surge): 8/20µs - L4, 95A(Line-Gnd), L4, 48A(Line-Line) FEA TURES ✔ 2000 Watts Peak Pulse Power per Line (tp=8/20µs) ✔ Protects Two (2) Lines ✔ 100A (2/10µs) per Bellcore GR-1089(Intra-B
