PLC01-6 - LOW CAPACITANCE TVS ARRAY

📥 Download Datasheet

Datasheet Details

Part number PLC01-6
Manufacturer Protek Devices
File Size 69.49 KB
Description LOW CAPACITANCE TVS ARRAY
Datasheet download datasheet PLC01-6 Datasheet

📁 Similar Datasheet

  • PLC-FP-X - Programmable Controllers (Panasonic)
  • PLC18V8Z - Zero standby power CMOS versatile PAL devices (NXP)
  • PLC4057 - 800mA linear charging chip (Prisemi)
  • PLC42VA12 - CMOS programmable multi-function PLD (NXP)
  • PLC810PG - Continuous Mode PFC & LLC Controller (Power Integrations)
  • PLCA110 - Integrated Solid State Surge Arrester and Solid State Relay (CP Clare)
  • PLCC - PLCC SOCKETS (Adam Technologies)
  • PLCC-44 - Surface Mount PLCC Sockets (Framatome Connectors)
  • PLCC-44 - Surface Mount PLCC Sockets (KCC)
  • PLCC-44 - Surface Mount PLCC Sockets (Methode Electronics)
Other Datasheets by Protek Devices
  • PLC03-3.3 - LOW CAPACITANCE TVS ARRAY
  • PLC03-3.3-DFN - HIGH POWER LOW CAPACITANCE TVS ARRAY
  • PLC03-6 - STEERING DIODE / TVS ARRAY COMBO
  • PLC496 - ULTRA LOW CAPACITANCE TVS ARRAY
  • PLC497 - ULTRA LOW CAPACITANCE STEERING DIODE/TVS ARRAY
  • PLCDA03 - 500W MULTI-LINE ULTRA LOW CAPACITANCE TVS ARRAY
  • PLCDA05 - 500W MULTI-LINE ULTRA LOW CAPACITANCE TVS ARRAY
  • PLCDA08 - 500W MULTI-LINE ULTRA LOW CAPACITANCE TVS ARRAY

Full PDF Text Transcription

Click to expand full text

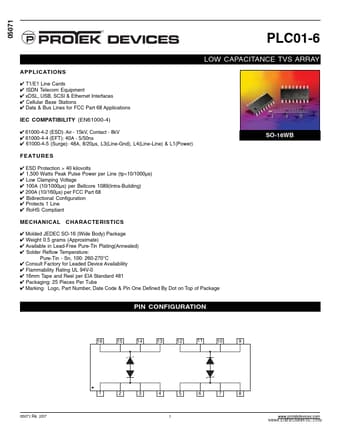

05071 PLC01-6 LOW CAPACITANCE TVS ARRAY APPLICATIONS ✔ T1/E1 Line Cards ✔ ISDN Telecom Equipment ✔ xDSL, USB, SCSI & Ethernet Interfaces ✔ Cellular Base Stations ✔ Data & Bus Lines for FCC Part 68 Applications IEC COMPATIBILITY (EN61000-4) ✔ 61000-4-2 (ESD): Air - 15kV, Contact - 8kV ✔ 61000-4-4 (EFT): 40A - 5/50ns ✔ 61000-4-5 (Surge): 48A, 8/20µs, L3(Line-Gnd), L4(Line-Line) & L1(Power) F E AT U R E S ✔ ESD Protection > 40 kilovolts ✔ 1,500 Watts Peak Pulse Power per Line (tp=10/1000µs) ✔ Low Clamping Voltage ✔ 100A (10/1000µs) per Bellcore 1089(Intra-Building) ✔ 200A (10/160µs) per FCC Part 68 ✔ Bidirectional Configuration ✔ Protects 1 Line ✔ RoHS Compliant MECHANICAL CHARACTERISTICS SO-16WB ✔ Molded JEDEC SO-16 (Wide Body) Package ✔ Weight 0.
