PL392P-A - Single-phase Motor Pre-Driver

Prolific

📥 Download Datasheet

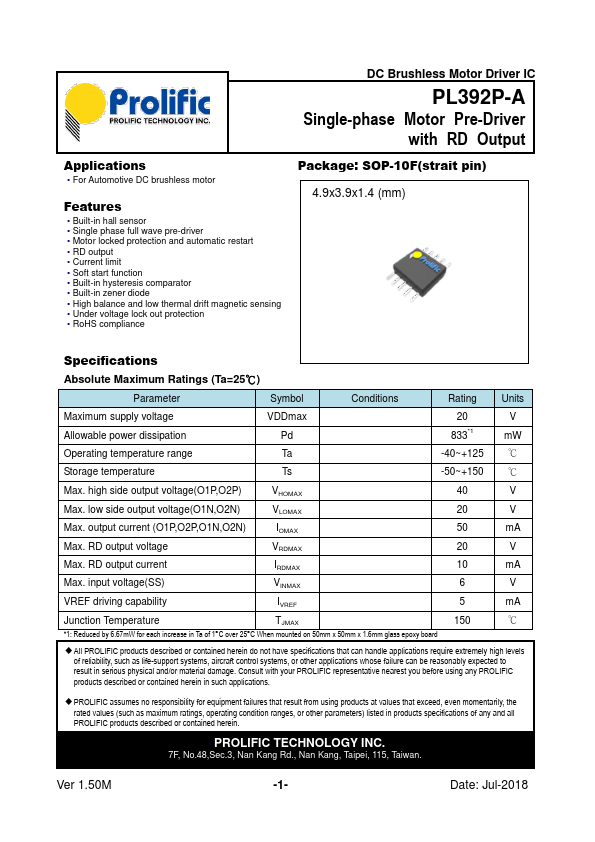

PL392P-A Datasheet Preview — Preview of PL392P-A PDF

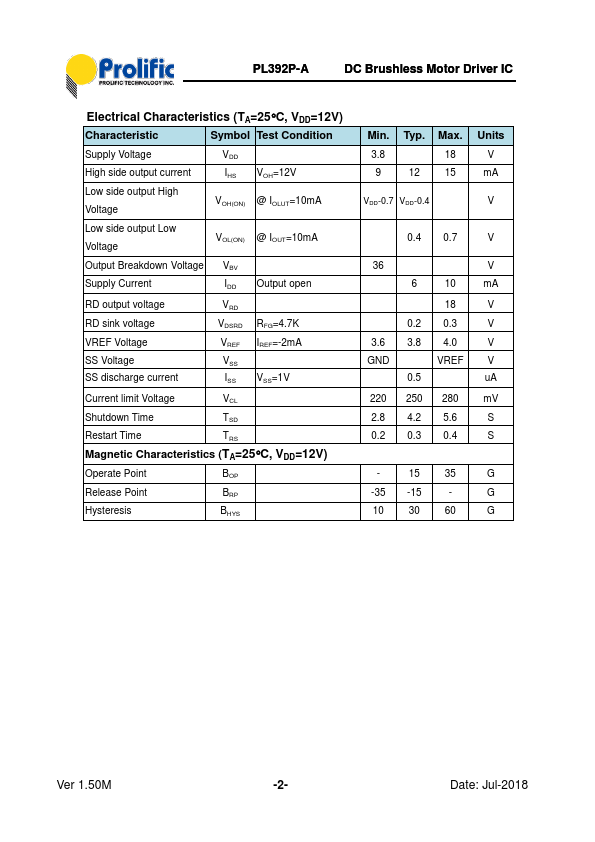

datasheet Preview Page 2

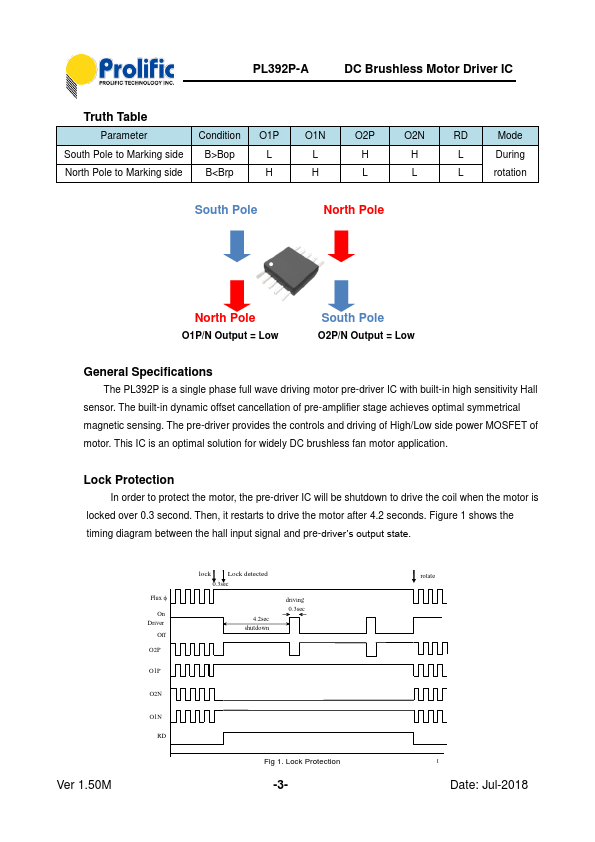

datasheet Preview Page 3

Datasheet Details

Part number	PL392P-A
Manufacturer	Prolific
File Size	792.19 KB
Description	Single-phase Motor Pre-Driver
Datasheet	PL392P-A-Prolific.pdf

PL392P-A Product details

Features

Built-in hall sensor.
Single phase full wave pre-driver.
Motor locked protection and automatic restart.
RD output.
Current limit.
Soft start function.
Built-in hysteresis comparator.
Built-in zener diode.
High balance and low thermal drift magnetic sensing.
Under voltage lock out protection.
RoHS compliance Package: SOP-10F(strait pin) 4.9x3.9x1.4 (mm) Specifications Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Conditions Rating.
