PL392F - 12V Single coil Motor Driver

Prolific

📥 Download Datasheet

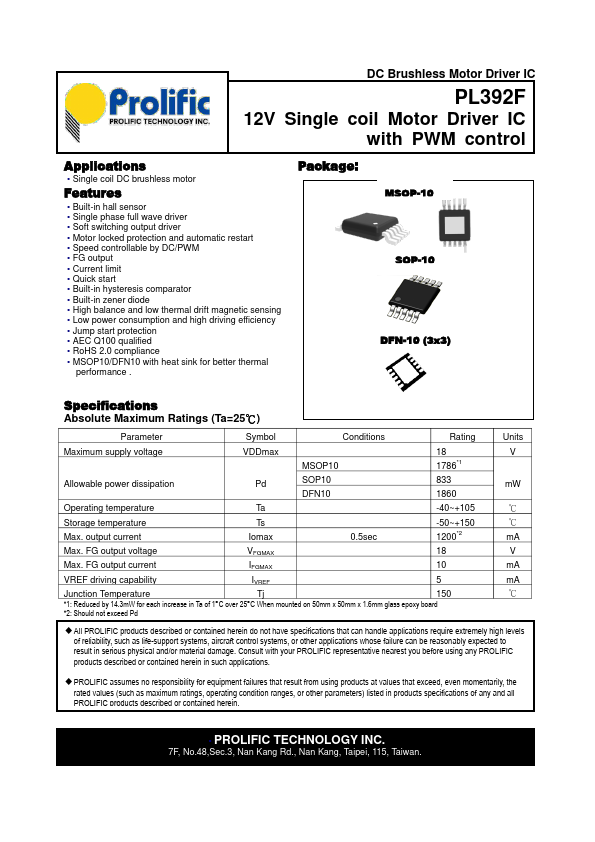

PL392F Datasheet Preview — Preview of PL392F PDF

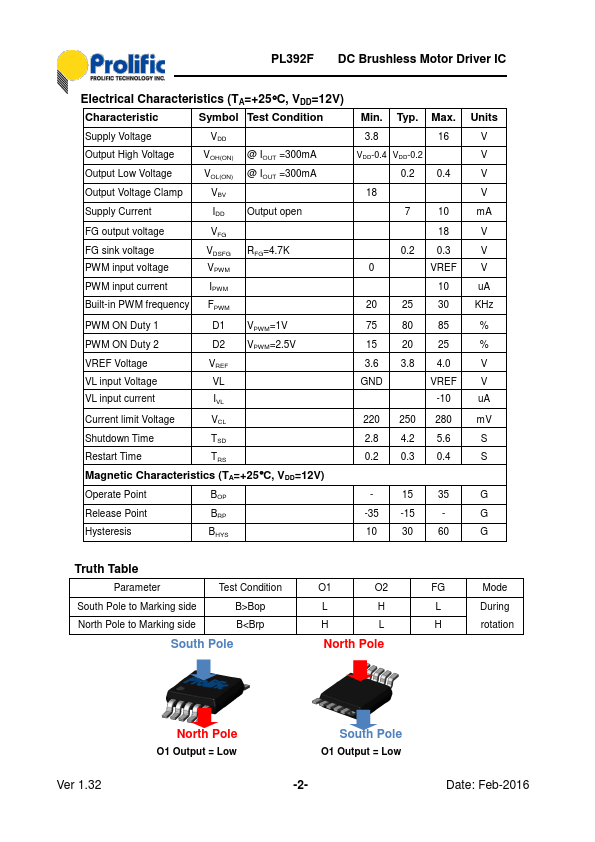

datasheet Preview Page 2

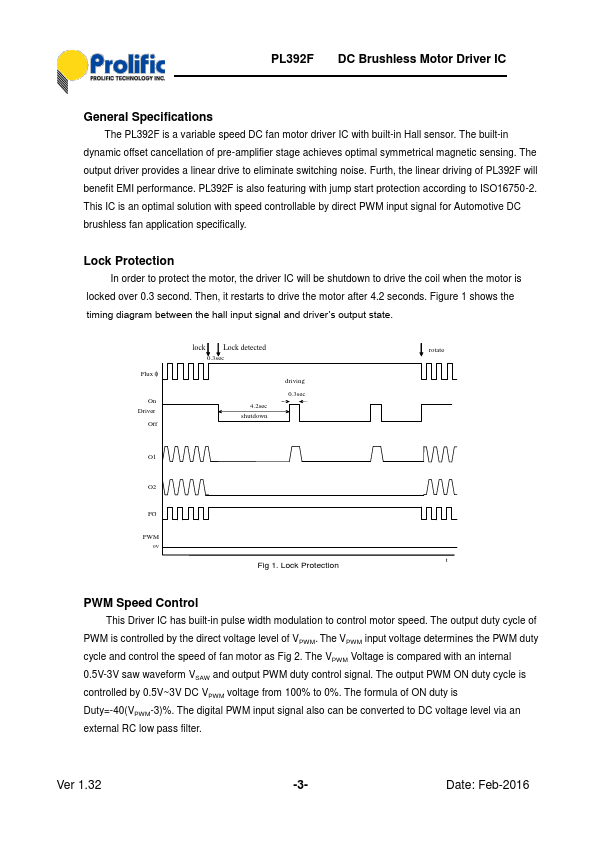

datasheet Preview Page 3

Datasheet Details

Part number	PL392F
Manufacturer	Prolific
File Size	881.92 KB
Description	12V Single coil Motor Driver
Datasheet	PL392F-Prolific.pdf

PL392F Product details

Features

Built-in hall sensor.
Single phase full wave driver.
Soft switching output driver.
Motor locked protection and automatic restart.
Speed controllable by DC/PWM.
FG output.
Current limit.
Quick start.
Built-in hysteresis comparator.
Built-in zener diode.
High balance and low thermal drift magnetic sensing.
Low power consumption and high driving efficiency.
Jump start protection.
AEC Q100 qualified.
RoHS 2.0 compliance.
