PNM8PN30V40 - N-Channel MOSFET

📥 Download Datasheet

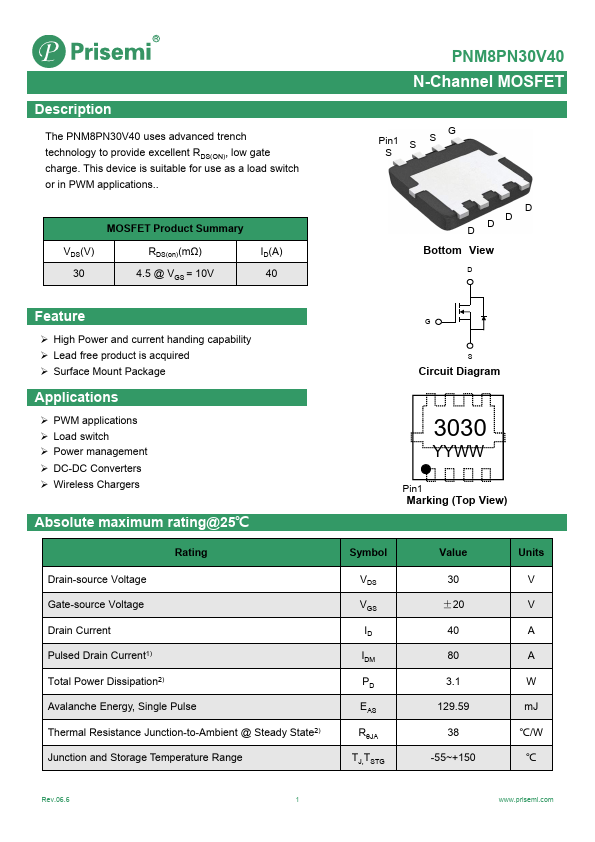

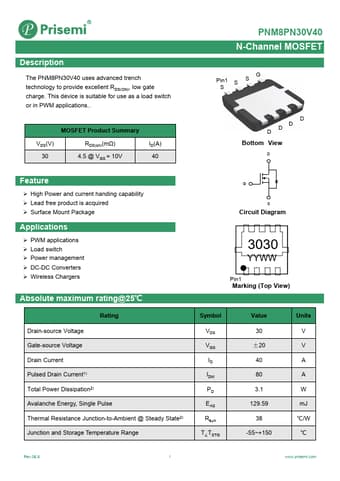

Preview of PNM8PN30V40 PDF

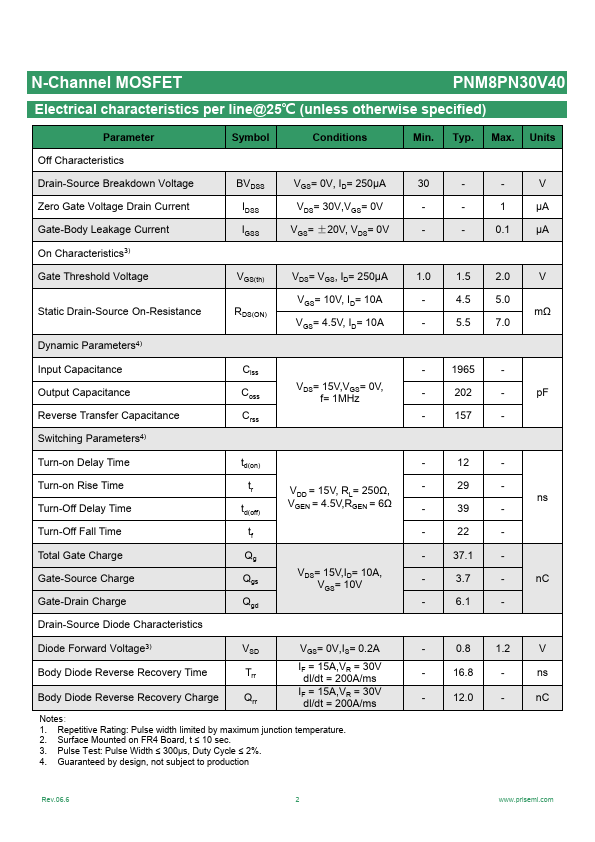

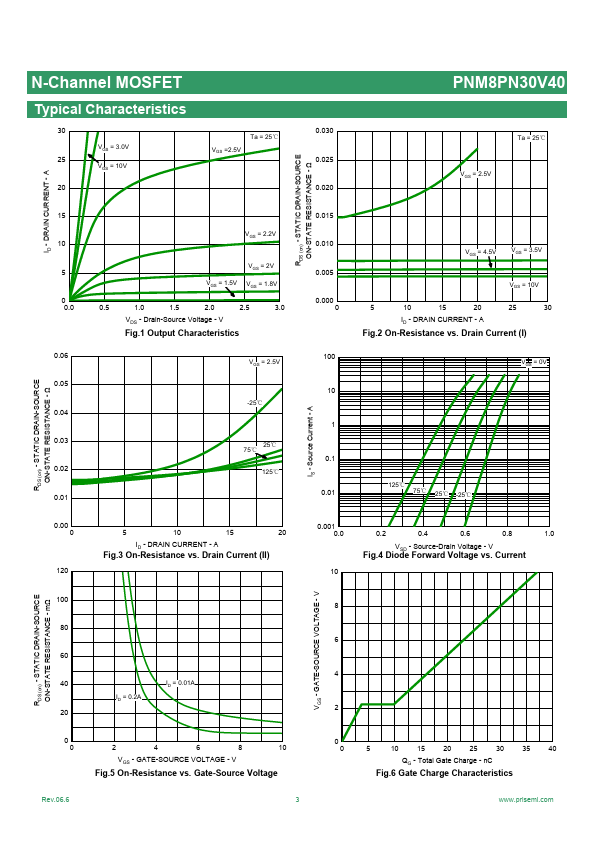

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number PNM8PN30V40
Manufacturer Prisemi
File Size 323.90 KB
Description N-Channel MOSFET
Datasheet download datasheet PNM8PN30V40-Prisemi.pdf

PNM8PN30V40 Product details

Description

The PNM8PN30V40 uses advanced trench technology to provide excellent RDS(ON), low gate charge. High Power and current handing capability Lead free product is acquired Surface Mount Package Applications PWM applications Load switch Power manage
