PNM3FD20V1EN Datasheet - Prisemi

PNM3FD20V1EN - N-Channel MOSFET

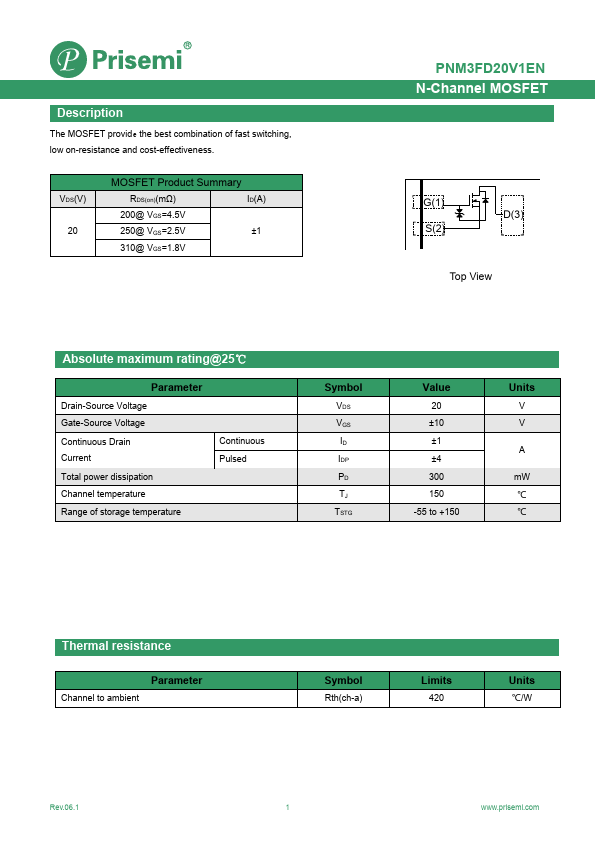

The MOSFET provide the best combination of fast switching, low on-resistance and cost-effectiveness. VDS(V) 20 MOSFET Product Summary RDS(on)(mΩ) ID(A) 200@ VGS=4.5V 250@ VGS=2.5V ±1 310@ VGS=1.8V PNM3FD20V1EN N-Channel MOSFET G(1) D(3) S(2) Top View Absolute maximum rating@25℃ Parameter .

PNM3FD20V1EN-Prisemi.pdf

PNM3FD20V1EN Datasheet Preview — Preview of PNM3FD20V1EN PDF

Datasheet Details

Part number:

PNM3FD20V1EN

Manufacturer:

Prisemi

File Size:

282.16 KB

Description:

N-channel mosfet.
