PESDUC2XD5VB - Bi-directional 5V Low Capacitance ESD Protector

Prisemi

The PESDUC2XD5VB by Prisemi is a Bi-directional 5V Low Capacitance ESD Protector. Below is the official datasheet preview.

📥 Download Datasheet

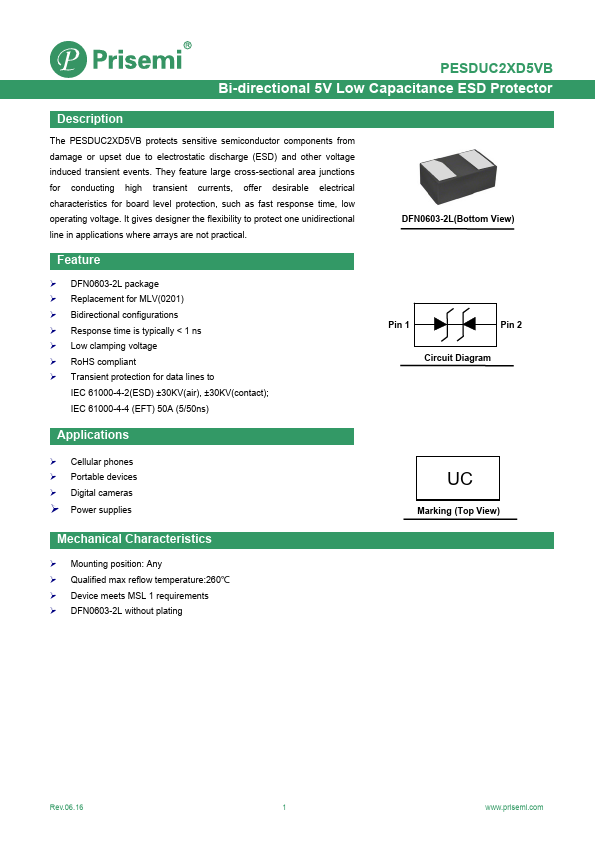

PESDUC2XD5VB Bi-directional 5V Low Capacitance ESD Protector by Prisemi - Datasheet Preview — Official preview page of the **PESDUC2XD5VB** Bi-directional 5V Low Capacitance ESD Protector datasheet (Prisemi).

Datasheet Details

Part number	PESDUC2XD5VB
Manufacturer	Prisemi
File Size	331.18 KB
Description	Bi-directional 5V Low Capacitance ESD Protector
Datasheet	PESDUC2XD5VB-Prisemi.pdf

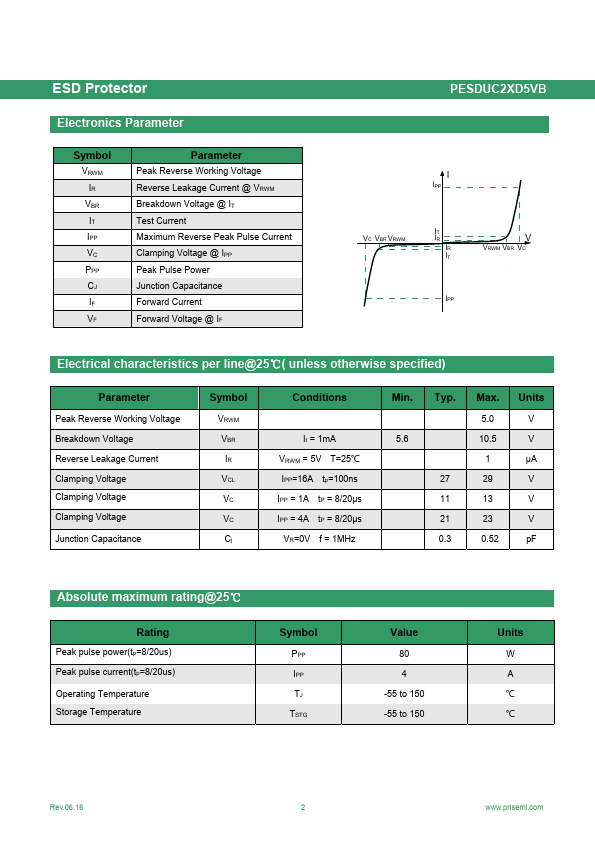

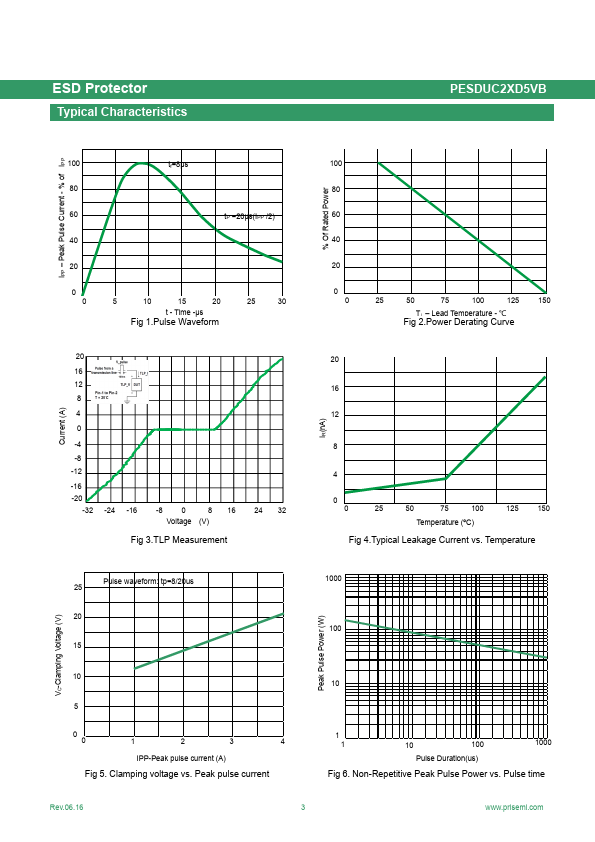

Additional preview pages of the PESDUC2XD5VB datasheet.

PESDUC2XD5VB Product details

Description

The PESDUC2XD5VB protects sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events.
