PESDALC10N5VU - Low Capacitance TVS Array

Datasheet Summary

Description

The PESDALC10N5VU is low capacitance transient voltage suppressor array for high speed data interface that designed to protect sensitive electronics from damage or latch-up due to ESD lightning, and other voltage induced transient events.

Prisemi

📥 Download Datasheet

Datasheet Details

Part number	PESDALC10N5VU
Manufacturer	Prisemi
File Size	487.98 KB
Description	Low Capacitance TVS Array
Datasheet	PESDALC10N5VU Datasheet

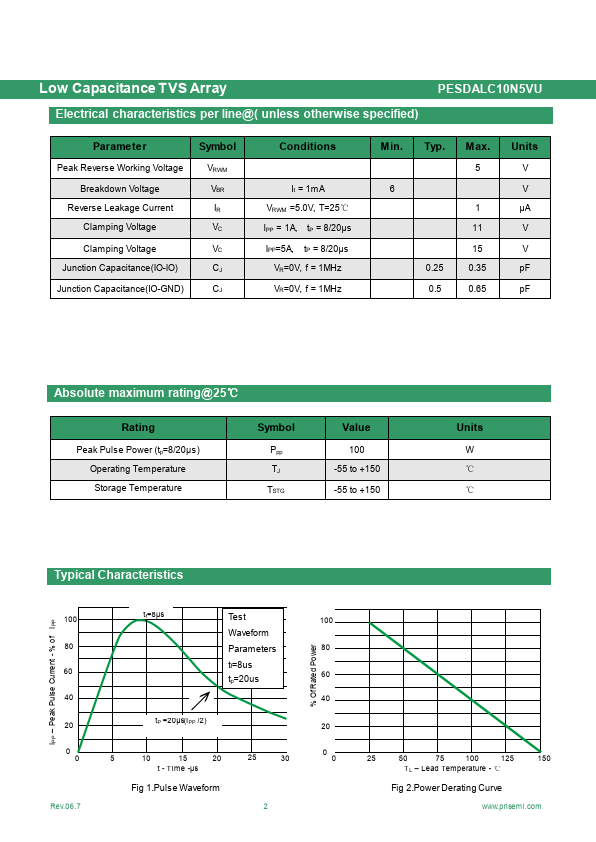

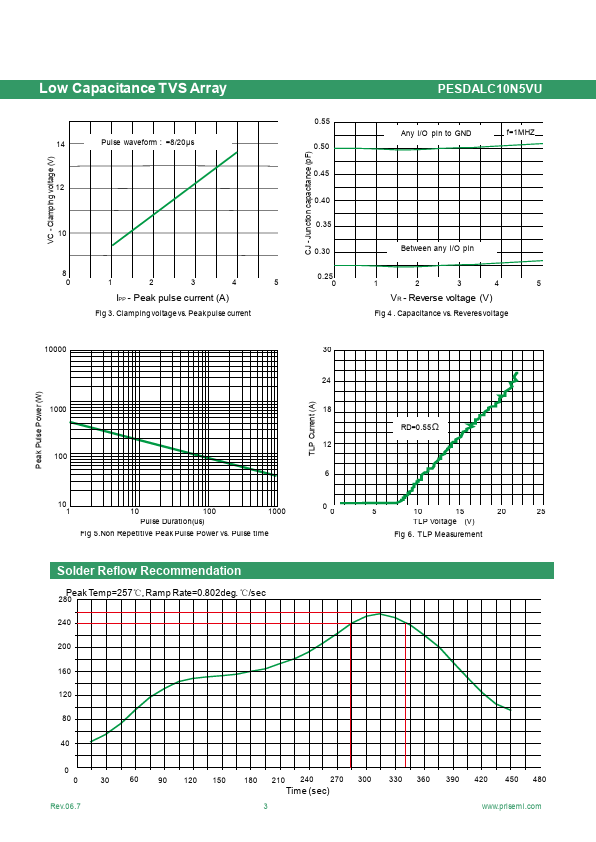

Additional preview pages of the PESDALC10N5VU datasheet.

📁 Similar Datasheet

PESD0402-050 - ESD Suppressor (YENJI)
PESD0402-060 - ESD Protector (Tyco)
PESD0402-140 - ESD Protector (Littelfuse)
PESD0402-140 - ESD Suppressor (YENJI)
PESD0402-240 - ESD Suppressor (YENJI)
PESD0542U015 - ESD Protection Devices (Leiditech)
PESD05BULC - ULTRA low capacitance TVS ARRAY (ProTek Devices)
PESD05NFA - TVS Diode (Leiditech)
PESD0603-140 - ESD Protector (Tyco)
PESD0603-240 - ESD Protector (Littelfuse)

Other Datasheets by Prisemi

PESDALC23T12VU - Low Capacitance TVS Array
PESDAUC236T5VU - Low Capacitance TVS Array
PESDHC2FD12VU - High Capacitance ESD Protector
PESDHC2FD12VUH - High Capacitance ESD Protector
PESDHC2FD4V5B - Bi-directional 4.5V High Capacitance ESD Protector
PESDHC2FD4V5BH - Bi-directional 4.5V High Capacitance ESD Protector
PESDHC2FD5VBH - High Capacitance ESD Protector
PESDHC2FD5VU - High Capacitance ESD Protector

Full PDF Text Transcription

Click to expand full text

PESDALC10N5VU Low Capacitance TVS Array Description The PESDALC10N5VU is low capacitance transient voltage suppressor array for high speed data interface that designed to protect sensitive electronics from damage or latch-up due to ESD lightning, and other voltage induced transient events. All pins are rated to withstand 15kV ESD pulses using the IEC 61000-4-2 air discharge method, which can meet the requirement of level 4. S 10 9 8 7 6 1 2 3 4 5 Feature Applications  100W peak pulse power (tP = 8/20μs)   DFN-10 Package   Working voltage: 5.

Published: Oct 11, 2025 |
