PESDNC2XD5V5BHF - Bi-directional 5.5V Normal Capacitance ESD Protector

Prisemi

The PESDNC2XD5V5BHF by Prisemi is a Bi-directional 5.5V Normal Capacitance ESD Protector. Below is the official datasheet preview.

📥 Download Datasheet

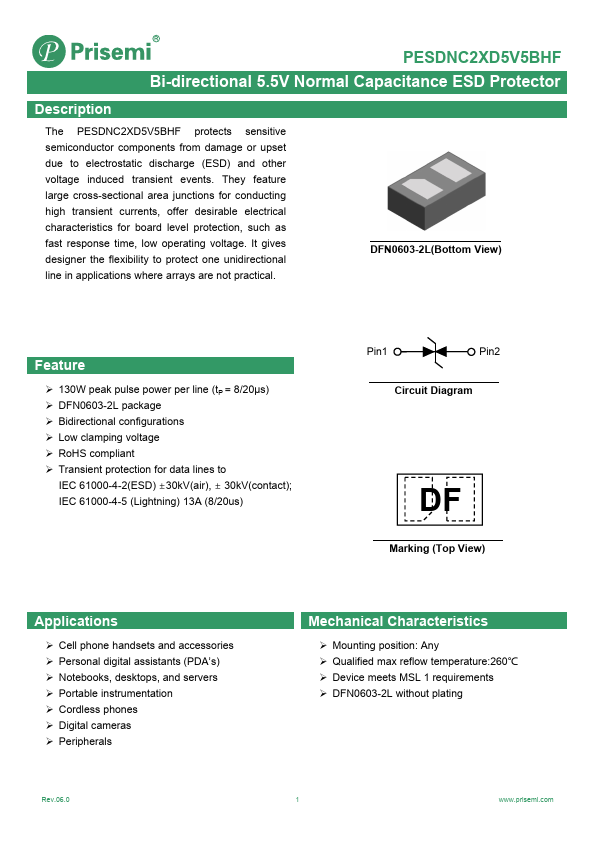

PESDNC2XD5V5BHF Bi-directional 5.5V Normal Capacitance ESD Protector by Prisemi - Datasheet Preview — Official preview page of the **PESDNC2XD5V5BHF** Bi-directional 5.5V Normal Capacitance ESD Protector datasheet (Prisemi).

Datasheet Details

Part number	PESDNC2XD5V5BHF
Manufacturer	Prisemi
File Size	294.27 KB
Description	Bi-directional 5.5V Normal Capacitance ESD Protector
Datasheet	PESDNC2XD5V5BHF-Prisemi.pdf

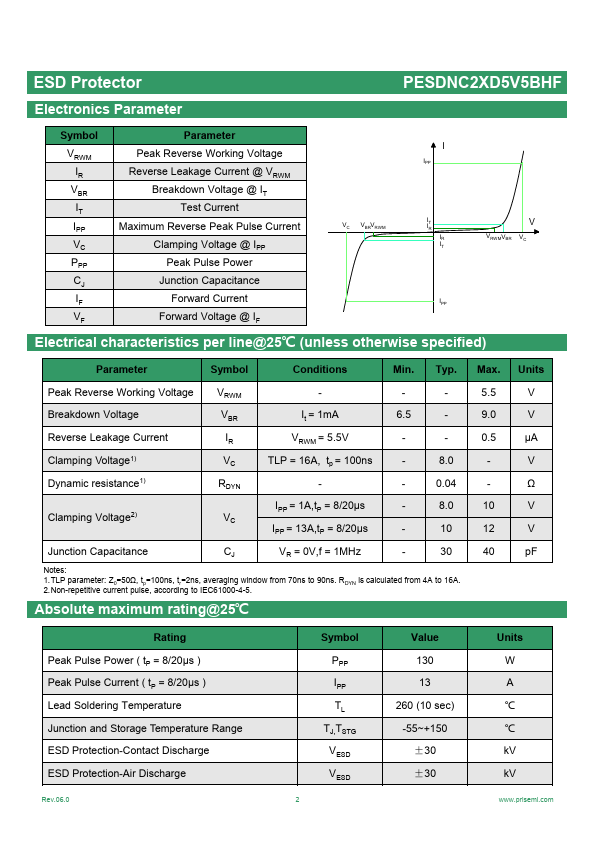

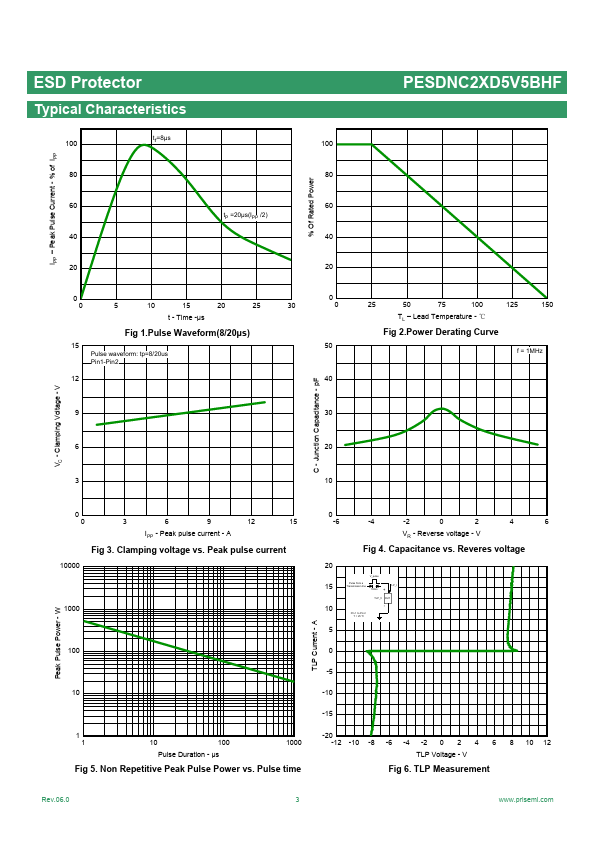

Additional preview pages of the PESDNC2XD5V5BHF datasheet.

PESDNC2XD5V5BHF Product details

Description

The PESDNC2XD5V5BHF protects sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events.
