PESDNC2FD5VB - TVS Diode

Name: PESDNC2FD5VB
SKU: PESDNC2FD5VB-1519790

Leiditech

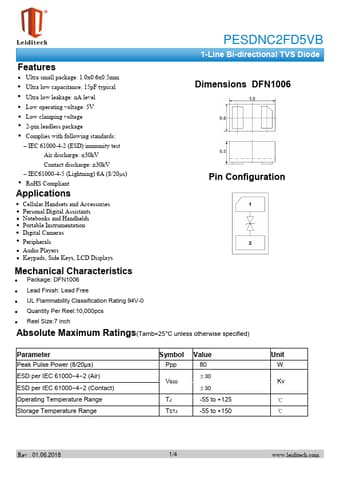

The PESDNC2FD5VB by Leiditech is a TVS Diode. Below is the official datasheet preview.

Datasheet Details

Part number	PESDNC2FD5VB
Manufacturer	Leiditech
File Size	1.79 MB
Description	TVS Diode
Datasheet	PESDNC2FD5VB-Leiditech.pdf
Additional preview pages of the PESDNC2FD5VB datasheet.

Ultra small package: 1.0x0.6x0.5mm.
Ultra low capacitance: 15pF typical.
Ultra low leakage: nA level.
Low operating voltage: 5V.
Low clamping voltage.
2-pin leadless package.
Complies with following standards:.
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV.
IEC61000-4-5 (Lightning) 6A (8/20μs).
RoHS Compliant.
