PT2329 - 2CH Electronic Volume

Princeton Technology

📥 Download Datasheet

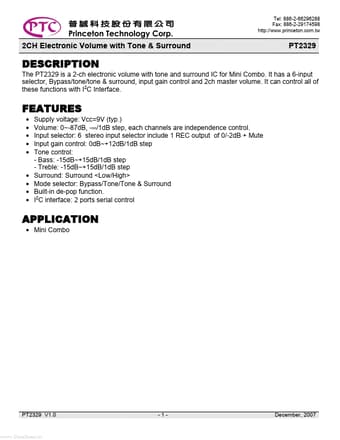

PT2329 Datasheet Preview — Preview of PT2329 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PT2329
Manufacturer	Princeton Technology
File Size	204.54 KB
Description	2CH Electronic Volume
Datasheet	PT2329_PrincetonTechnology.pdf

PT2329 Product details

Description

The PT2329 is a 2-ch electronic volume with tone and surround IC for Mini Combo.

Features

Supply voltage: Vcc=9V (typ. ) Volume: 0~-87dB, -∞/1dB step, each channels are independence control. Input selector: 6 stereo input selector include 1 REC output of 0/-2dB + Mute Input gain control: 0dB~+12dB/1dB step Tone control: - Bass: -15dB~+15dB/1dB step - Treble: -15dB~+15dB/1dB step Surround: Surround Mode selector: Bypass/Tone/Tone & Surround Built-in de-pop function. I2C interface: 2 por.
