PT2325 - 6 Channel Volume Controller

Princeton Technology

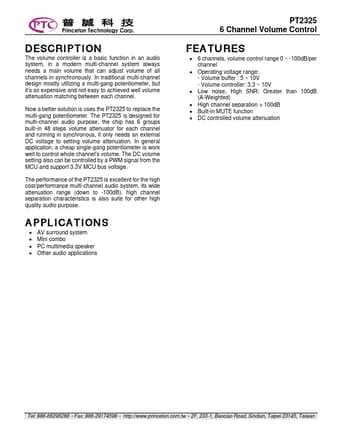

PT2325 Datasheet Preview — Preview of PT2325 PDF

Datasheet Details

Part number	PT2325
Manufacturer	Princeton Technology
File Size	121.44 KB
Description	6 Channel Volume Controller
Datasheet	PT2325_PrincetonTechnology.pdf

PT2325 Product details

Description

The volume controller is a basic function in an audio system, in a modern multi-channel system always needs a main volume that can adjust volume of all channels in synchronously.

Features

6 channels, volume control range 0 ~ -100dB/per channel.
Operating voltage range: - Volume buffer : 5 ~ 10V - Volume controller: 3.3 ~ 10V.
Low noise, High SNR: Greater than 100dB (A-Weighted).
High channel separation > 100dB.
Built-in MUTE function.
DC controlled volume attenuation Tel: 886-66296288‧Fax: 886-29174598‧ http://www. princeton. com. tw‧2F, 233-1, Baociao Road, Sindian, Taipei 23145, Taiwan.
