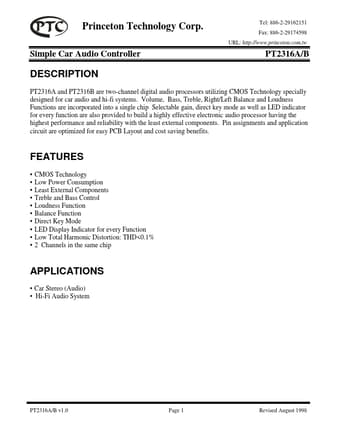

PT2316A Datasheet (Princeton Technology Corp)

PT2316A, Simple Car Audio Controller

PT2316A and PT2316B are two-channel digital audio processors utilizing CMOS Technology specially designed for car audio and hi-fi systems.

Volume, Bass, Treble, Right/Left Balance and Loudness Functions are incorporated into a single chip Selectable gain, direct key mode as well as LED indicator fo

PT2316A Features

* CMOS Technology

* Low Power Consumption

* Least External Components

* Treble and Bass Control

* Loudness Function

* Balance Function

* Direct Key Mode

* LED Display Indicator for every Function

* Low Total Harmonic Distortion:
