RJ47-12GDD2, RJ47-01ND2 - 10/100 BASE-T WITH MAGNETIC MODULE

📥 Download Datasheet

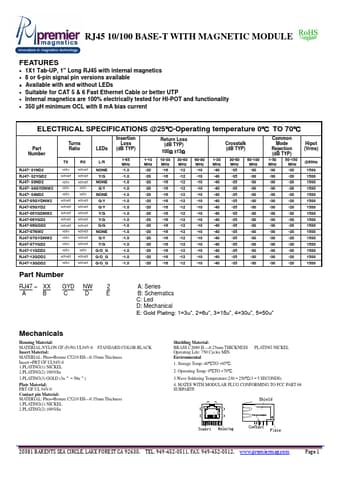

RJ47-12GDD2 Datasheet Preview — This datasheet PDF includes multiple part numbers: RJ47-12GDD2, RJ47-01ND2. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RJ47-12GDD2, RJ47-01ND2
Manufacturer	Premier Magnetics
File Size	1.16 MB
Description	10/100 BASE-T WITH MAGNETIC MODULE
Datasheet	RJ47-01ND2-PremierMagnetics.pdf
Note	This datasheet PDF includes multiple part numbers: RJ47-12GDD2, RJ47-01ND2. Please refer to the document for exact specifications by model.

RJ47-12GDD2 Product details

Features

1X1 Tab-UP, 1" Long RJ45 with internal magnetics.
8 or 6-pin signal pin versions available.
Available with and without LEDs.
Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.
Internal magnetics are 100% electrically tested for HI-POT and functionality.
350 µH minimum OCL with 8 mA bias current.
