RJ47-01ND2 - 10/100 BASE-T WITH MAGNETIC MODULE

RJ47-01ND2 Description

RJ45 10/100 BASE-T WITH MAGNETIC MODULE .

RJ47-01ND2 Features

* 1X1 Tab-UP, 1" Long RJ45 with internal magnetics
* 8 or 6-pin signal pin versions available
* Available with and without LEDs
* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP
* Internal magnetics are 100% electrically tested for HI-POT and functionality
* 350 µH m

📥 Download Datasheet

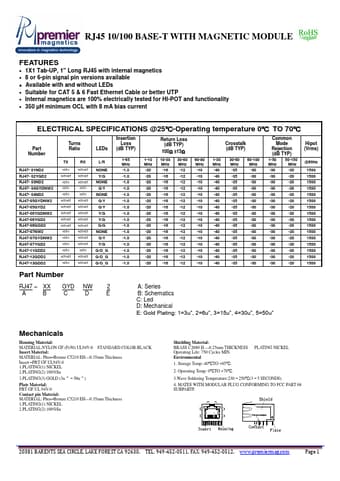

RJ47-01ND2 Datasheet Preview — Preview of RJ47-01ND2 PDF

Datasheet Details

Part number: RJ47-01ND2
Manufacturer: Premier Magnetics
File Size: 1.16 MB
Datasheet: RJ47-01ND2-PremierMagnetics.pdf
Description: 10/100 BASE-T WITH MAGNETIC MODULE
