PL8323 - 3.1A Monolithic Buck Converter

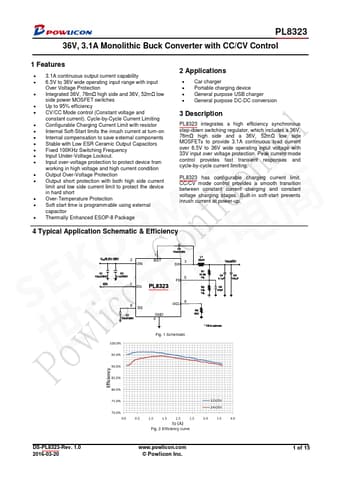

PL8323 Datasheet Preview — Preview of PL8323 PDF

Datasheet Details

Part number	PL8323
Manufacturer	Powlicon
File Size	1.67 MB
Description	3.1A Monolithic Buck Converter
Datasheet	PL8323-Powlicon.pdf

PL8323 Product details

Description

PL8323 integrates a high efficiency synchronous step-down switching regulator, which includes a 36V, 76mΩ high side and a 36V, 52mΩ low side MOSFETs to provide 3.1A continuous load current over 6.5V to 36V wide operating input voltage with 33V input over voltage protection.

Features

3.1A continuous output current capability.
6.5V to 36V wide operating input range with input Over Voltage Protection.
Integrated 36V, 76mΩ high side and 36V, 52mΩ low side power MOSFET switches.
Up to 95% efficiency.
CV/CC Mode control (Constant voltage and constant current). Cycle-by-Cycle Current Limiting.
Configurable Charging Current Limit with resistor.
Internal Soft-Start limits the inrush current at turn-on.
Internal compensation to save external c.
