PL5901 - Synchronous PWM Buck Controller

📥 Download Datasheet

PL5901 Datasheet Preview — Preview of PL5901 PDF

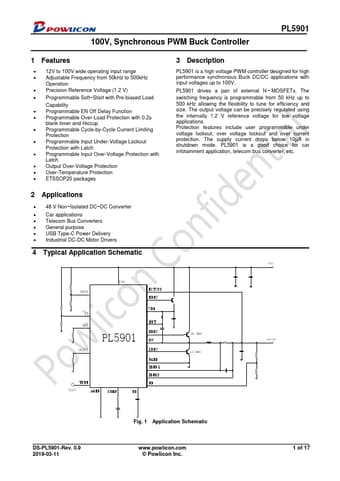

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PL5901
Manufacturer	Powlicon
File Size	1.95 MB
Description	Synchronous PWM Buck Controller
Datasheet	PL5901-Powlicon.pdf

PL5901 Product details

Description

PL5901 is a high voltage PWM controller designed for high performance synchronous Buck DC/DC applications with input voltages up to 100V. MOSFETs.

Features

12V to 100V wide operating input range.
Adjustable Frequency from 50kHz to 500kHz Operation.
Precision Reference Voltage (1.2 V).
Programmable Soft.
Start with Pre-biased Load Capability.
Programmable EN Off Delay Function.
Programmable Over-Load Protection with 0.2s blank timer and Hiccup.
Programmable Cycle-by-Cycle Current Limiting Protection.
Programmable Input Under-Voltage Lockout Protection with Latch.
Programmable Input Over-Voltage Pr.
