PL5700 - Boost PWMController

📥 Download Datasheet

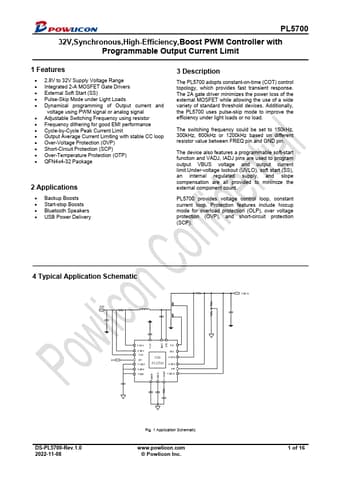

PL5700 Datasheet Preview — Preview of PL5700 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PL5700
Manufacturer	Powlicon
File Size	4.10 MB
Description	Boost PWMController
Datasheet	PL5700-Powlicon.pdf

PL5700 Product details

Description

The PL5700 adopts constant-on-time (COT) control topology, which provides fast transient response.

Features

2.8V to 32V Supply Voltage Range.
Integrated 2-A MOSFET Gate Drivers.
External Soft Start (SS).
Pulse-Skip Mode under Light Loads.
Dynamical programming of Output current and voltage using PWM signal or analog signal.
Adjustable Switching Frequency using resistor.
Frequency dithering for good EMI performance.
Cycle-by-Cycle Peak Current Limit.
Output Average Current Limiting with stable CC loop.
Over-Voltage Protection (OVP).
Short-Circuit.
