QIC0610001 - Dual Common Emitter IGBT

Powerex Power Semiconductors

📥 Download Datasheet

QIC0610001 Datasheet Preview — Preview of QIC0610001 PDF

datasheet Preview Page 2

Datasheet Details

Part number	QIC0610001
Manufacturer	Powerex Power Semiconductors
File Size	27.84 KB
Description	Dual Common Emitter IGBT
Datasheet	QIC0610001_PowerexPowerSemiconductors.pdf

QIC0610001 Product details

Description

Powerex Dual Common Emitter IGBT Power Module

Features

two common emitter IGBT’s. Features:.

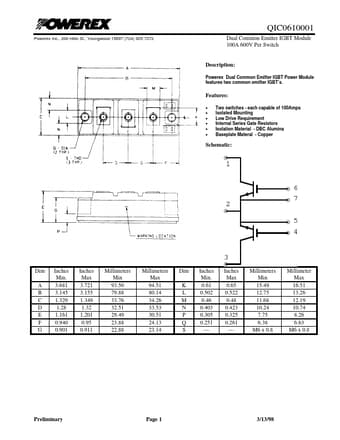

Two switches - each capable of 100Amps Isolated Mounting Low Drive Requirement Internal Series Gate Resistors Isolation Material - DBC Alumina Baseplate Materal - Copper Schematic: 1 6 7 5 4 3 Dim A B C D E F G Inches Min. 3.681 3.145 1.329 1.28 1.161 0.940 0.901 Inches Max 3.721 3.155 1.349 1.32 1.201 0.95 0.911 Millimeters Min 93.50 79.88 33.76 32.51 29.49 23.88 22.88 Millimeters Max 94.51 80.14.
