DFC25E24T5 - TRIPLE OUTPUT

Product Overview

Power-One

📥 Download Datasheet

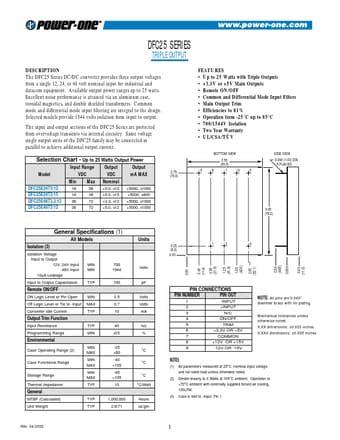

DFC25E24T5 TRIPLE OUTPUT by Power-One - Datasheet Preview — Datasheet preview – DFC25E24T5

Datasheet Details

Part number	DFC25E24T5
Manufacturer	Power-One
File Size	29.95 KB
Description	TRIPLE OUTPUT
Datasheet	DFC25E24T5 Datasheet
Note	This datasheet PDF includes multiple part numbers: DFC25E24T5, DFC25E24T5_Power. Please refer to the document for exact specifications by model.
Additional preview pages of the DFC25E24T5 datasheet.

Product details

Description

The DFC25 Series DC/DC converter provides three output voltages from a single 12, 24, or 48 volt nominal input for industrial and datacom equipment.

Features

Up to 25 Watts with Triple Outputs.
+3.3V or +5V Main Outputs.
Remote ON/OFF.
Common and Differential Mode Input Filters.
Main Output Trim.
Efficiencies to 81%.
Operation from -25°C up to 85°C.
700/1544V Isolation.
Two Year Warranty.
UL/CSA/TÜV BOTTOM VIEW SIDE VIEW 0.040 (1.02) DIA 6 PLACES 6 5 Input Range VDC Min Max 18 18 36 36 36 36 72 72 Output VDC Nominal +5.0, ±12 +5.0, ±15 +3.3, ±12 +5.0, ±12 Ou.
