DFC25E12S - SINGLE OUTPUT

Product Overview

Power-One

📥 Download Datasheet

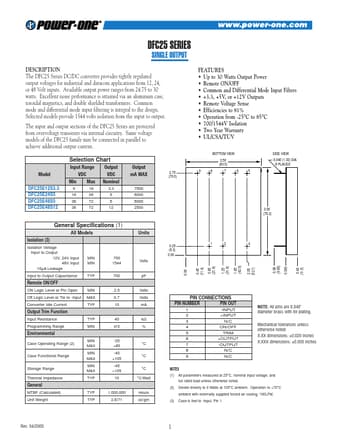

DFC25E12S SINGLE OUTPUT by Power-One - Datasheet Preview — Datasheet preview – DFC25E12S

Datasheet Details

Part number	DFC25E12S
Manufacturer	Power-One
File Size	115.89 KB
Description	SINGLE OUTPUT
Datasheet	DFC25E12S Datasheet
Note	This datasheet PDF includes multiple part numbers: DFC25E12S, DFC25E12S_Power. Please refer to the document for exact specifications by model.
Additional preview pages of the DFC25E12S datasheet.

Product details

Description

The DFC25 Series DC/DC converter provides tightly regulated output voltages for industrial and datacom applications from 12, 24, or 48 Volt inputs.

Features

Up to 30 Watts Output Power.
Remote ON/OFF.
Common and Differential Mode Input Filters.
+3.3, +5V, or +12V Outputs.
Remote Voltage Sense.
Efficiencies to 81%.
Operation from -25°C to 85°C.
700/1544V Isolation.
Two Year Warranty.
UL/CSA/TÜV BOTTOM VIEW SIDE VIEW 0.040 (1.02) DIA 6 PLACES 6 5 Input Range VDC Min Max 9 18 36 36 18 36 72 72 Output VDC Nominal 3.3 5 5 12 Output mA MAX 7500 6000 6000 2500 2.
