DFA20E24S15 - SINGLE OUTPUT

Product Overview

Power-One

Part number	DFA20E24S15
Manufacturer	Power-One
File Size	1.17 MB
Description	SINGLE OUTPUT
Datasheet	DFA20E24S15 Datasheet
Note	This datasheet PDF includes multiple part numbers: DFA20E24S15, DFA. Please refer to the document for exact specifications by model.

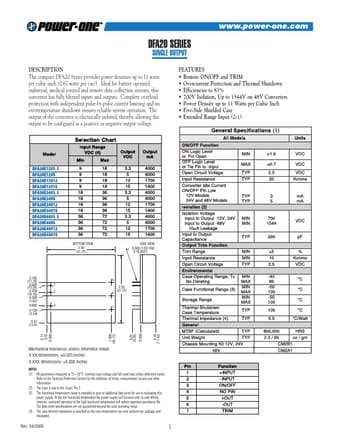

Additional preview pages of the DFA20E24S15 datasheet.

The compact DFA20 Series provides power densities up to 11 watts per cubic inch (0.67 watts per cm3).

Remote ON/OFF and TRIM.
Overcurrent Protection and Thermal Shutdown.
Efficiencies to 83%.
700V Isolation, Up to 1544V on 48V Converters.
Power Density up to 11 Watts per Cubic Inch.
Five-Side Shielded Case.
Extended Range Input (2:1) BOTTOM VIEW 2.02 (51.31) SIDE VIEW 0.040 (1.02) DIA 6 PLACES 0.700 (17.78) 0.600 (15.24) 0.400 (10.16) 0.300 (7.62) 0.000 0.100 (2.54) 0.51 (13.0) 5 1 2 6 2.02 (51.31) 3 7 0.25 (6.35) 0.11 (2.8).
