ADNS-3090 - High-Performance Optical Mouse Sensor

PixArt

The ADNS-3090 by PixArt is a High-Performance Optical Mouse Sensor. Below is the official datasheet preview.

📥 Download Datasheet

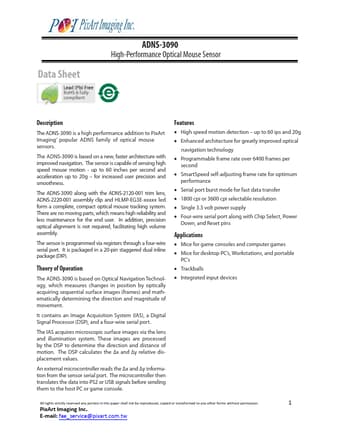

ADNS-3090 High-Performance Optical Mouse Sensor by PixArt - Datasheet Preview — Official preview page of the **ADNS-3090** High-Performance Optical Mouse Sensor datasheet (PixArt).

Datasheet Details

Part number	ADNS-3090
Manufacturer	PixArt
File Size	693.39 KB
Description	High-Performance Optical Mouse Sensor
Datasheet	ADNS-3090-PixArt.pdf
Additional preview pages of the ADNS-3090 datasheet.

ADNS-3090 Product details

Description

The ADNS-3090 is a high performance addition to PixArt Imaging’ popular ADNS family of optical mouse sensors. for increased user precision and smoothness.

Features

High speed motion detection.
up to 60 ips and 20g.
Enhanced architecture for greatly improved optical navigation technology.
Programmable frame rate over 6400 frames per second.
SmartSpeed self-adjusting frame rate for optimum performance.
Serial port burst mode for fast data transfer.
1800 cpi or 3600 cpi selectable resolution.
Single 3.3 volt power supply.
Four-wire serial port along with Chip Select, Power Down, and Reset pins.
