ADNS-2051 - Optical Mouse Sensor

Agilent Technologies

The ADNS-2051 by Agilent Technologies is a Optical Mouse Sensor. Below is the official datasheet preview.

📥 Download Datasheet

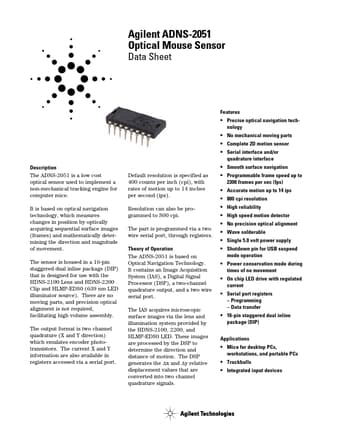

ADNS-2051 Optical Mouse Sensor by Agilent Technologies - Datasheet Preview — Official preview page of the ADNS-2051 Optical Mouse Sensor datasheet (Agilent Technologies).

Datasheet Details

Part number	ADNS-2051
Manufacturer	Agilent Technologies
File Size	446.63 KB
Description	Optical Mouse Sensor
Datasheet	ADNS-2051_AvagoTechnologies.pdf
Additional preview pages of the ADNS-2051 datasheet.

ADNS-2051 Product details

Description

The ADNS-2051 is a low cost optical sensor used to implement a non-mechanical tracking engine for computer mice.

Features

Precise optical navigation tech- nology.
No mechanical moving parts.
Complete 2D motion sensor.
Serial interface and/or quadrature interface.
Smooth surface navigation.
Programmable frame speed up to 2300 frames per sec (fps).
Accurate motion up to 14 ips.
800 cpi resolution.
High reliability.
High speed motion detector.
No precision optical alignment.
Wave solderable.
Single 5.0.
