Datasheet Details
| Part number | PJM10C30PA |
|---|---|
| Manufacturer | Ping Jing |
| File Size | 1.18 MB |
| Description | N and P-Channel Complementary Power MOSFET |
| Datasheet |
 PJM10C30PA-PingJing.pdf
|
| Part number | PJM10C30PA |
|---|---|
| Manufacturer | Ping Jing |
| File Size | 1.18 MB |
| Description | N and P-Channel Complementary Power MOSFET |
| Datasheet |
PJM10C30PA-PingJing.pdf
|

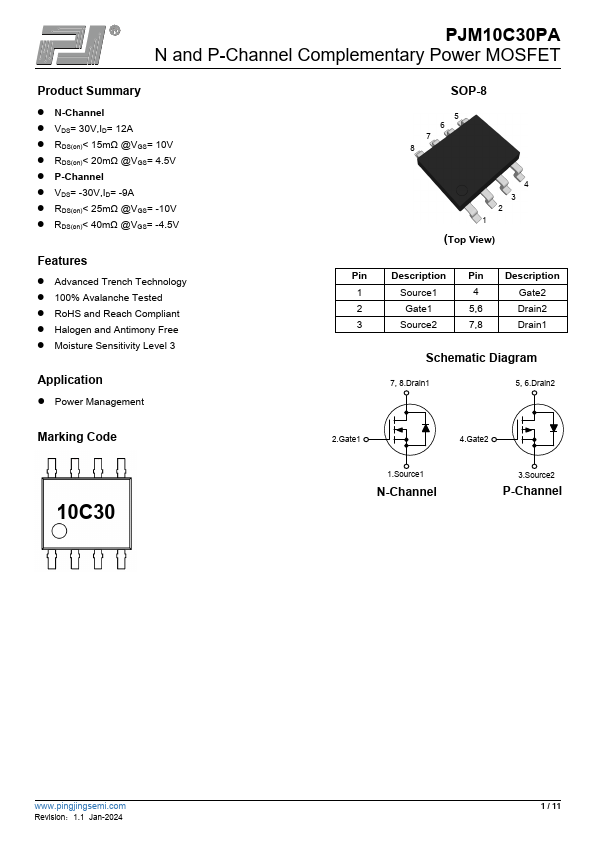

Pin Description 1 Source1 4 Gate2 2 Gate1 5,6 Drain2 3 Source2 7,8 Drain1 Schematic Diagram 7, 8.Drain1 5, 6.Drain2 Marking Code 2.Gate1 4.Gate2 10C30 1.Source1 N-Channel 3.Source2 P-Channel www.pingjingsemi.com Revision：1.1 Jan-2024 1 / 11 PJM10C30PA N and P-Channel Complementary Power MOSFET Absolute Maximum Ratings Ratings at 25℃ ambient temperature unless otherwise specified.Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Drain Current-Conti
