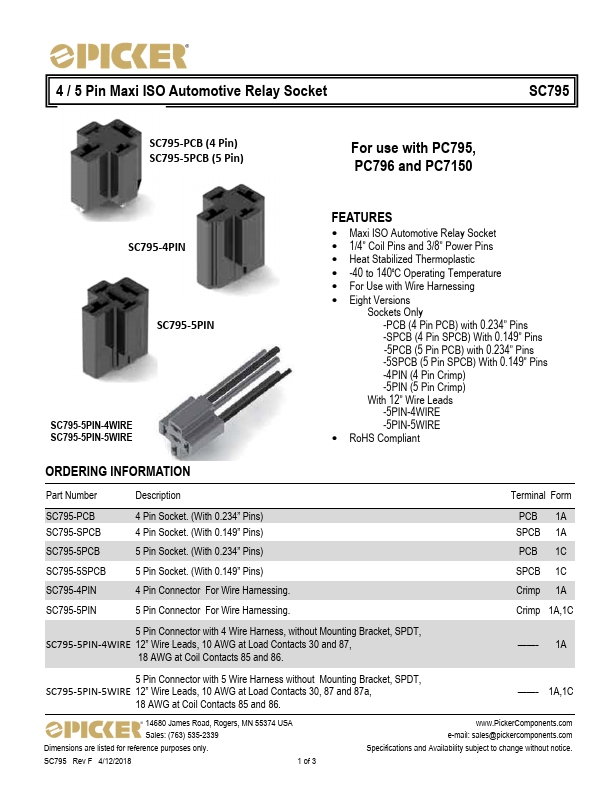

SC795 - Maxi ISO Automotive Relay Socket

Picker

Datasheet Details

Part number	SC795
Manufacturer	Picker
File Size	842.52 KB
Description	Maxi ISO Automotive Relay Socket
Datasheet	SC795-Picker.pdf

4 Pin Socket. - 1A 5 Pin Connector with 5 Wire Ha

 Maxi ISO Automotive Relay Socket.
 1/4” Coil Pins and 3/8” Power Pins.
 Heat Stabilized Thermoplastic.
 -40 to 140ºC Operating Temperature.
 For Use with Wire Harnessing.
 Eight Versions Sockets Only -PCB (4 Pin PCB) with 0.234” Pins -SPCB (4 Pin SPCB) With 0.149” Pins -5PCB (5 Pin PCB) with 0.234” Pins -5SPCB (5 Pin SPCB) With 0.149” Pins -4PIN (4 Pin Crimp) -5PIN (5 Pin Crimp) With 12” Wire Leads -5PIN-4WIRE -5PIN-5WIRE.
 RoHS Compliant.
