SC792 Mini ISO Automotive Relay Socket

SC792-1 SC792-2 SC792-3 SC792-1-5PIN-4Wire SC792-1-5PIN-5Wire SC792-3-5PIN-4Wire SC792-3-5PIN-5Wire 5 Pin Connector without Mounting Bracket for Wire Harness. 5 Pin Connector for Relay Or Flasher without Mounting Bracket for Wire Harness. 5 Pin Connector with Mounting Bracket for Wire Harness. 5 P.

SC792 Features

*  Mini ISO Automotive Relay Socket

*  Heat Stabilized Thermoplastic

*  -40 to 140ºC Operating Temperature

*  For Use with Wire Harnessing

*  Seven Versions Socket Only -1 No Mounting Bracket for Relay -2 No Mounting Bracket for Relay or Flasher -3 With Mounting Bracket for Relay

SC792 Datasheet (660.28 KB)

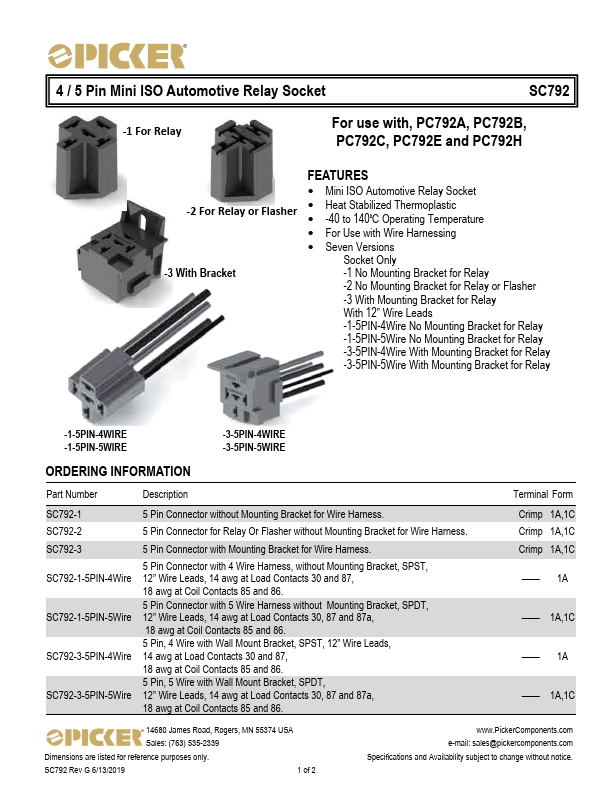

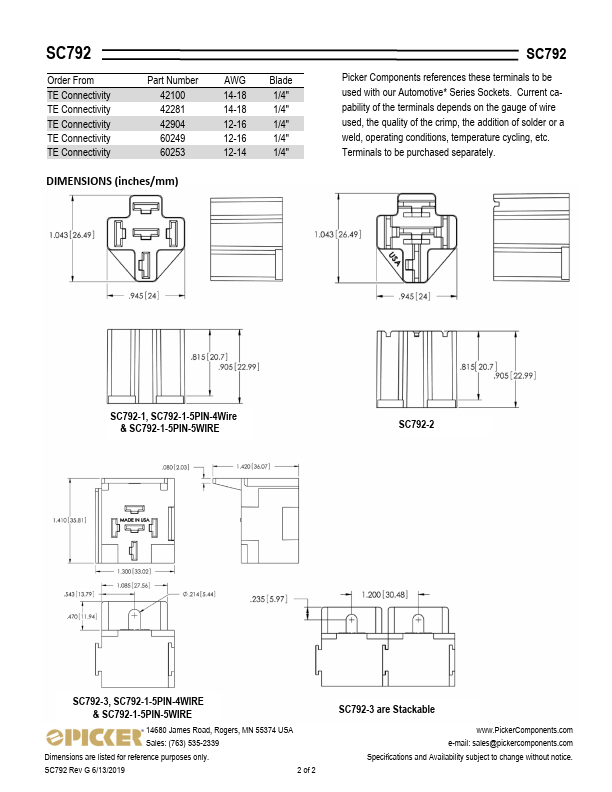

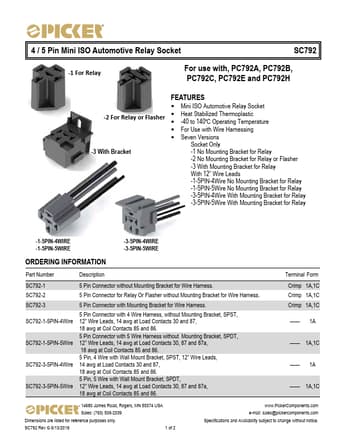

SC792 Datasheet Preview — Preview of SC792 PDF

Datasheet Details

Part number:

SC792

Manufacturer:

Picker

File Size:

660.28 KB

Description:

Mini iso automotive relay socket.
