PCS34 - DC Input Solid State Relay

Picker

📥 Download Datasheet

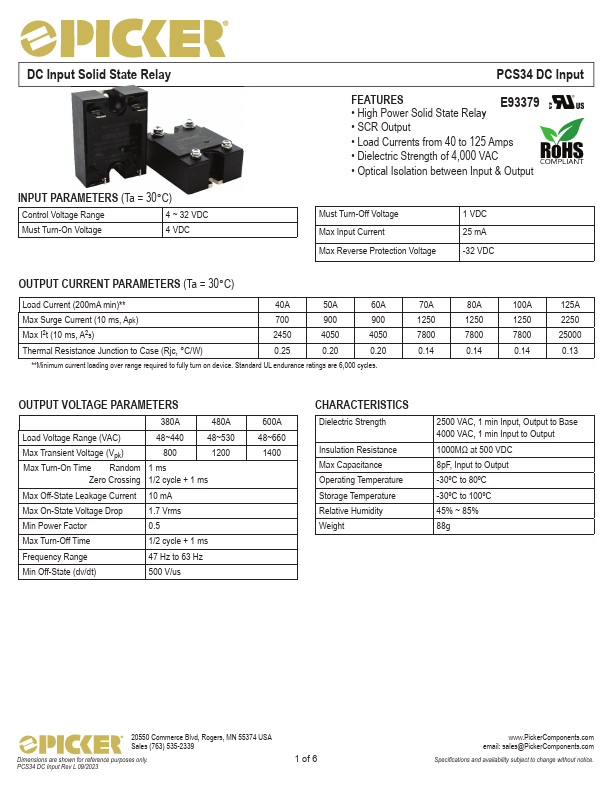

PCS34 Datasheet Preview — Preview of PCS34 PDF

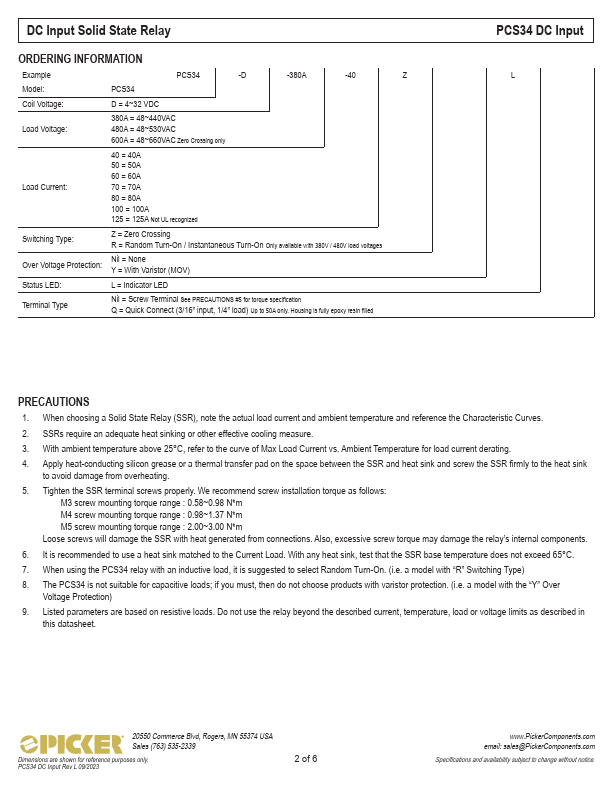

datasheet Preview Page 2

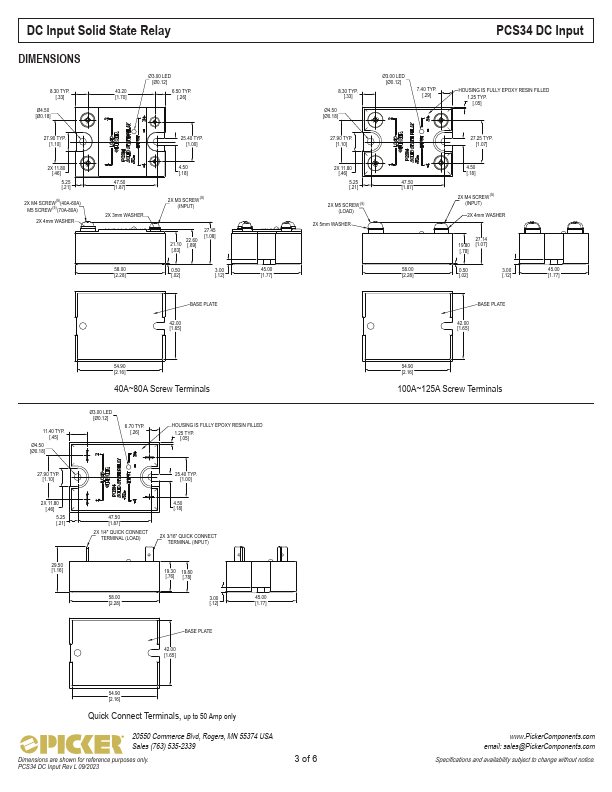

datasheet Preview Page 3

Datasheet Details

Part number	PCS34
Manufacturer	Picker
File Size	354.18 KB
Description	DC Input Solid State Relay
Datasheet	PCS34-Picker.pdf

PCS34 Product details

Features

E93379.
High Power Solid State Relay.
SCR Output.
Load Currents from 40 to 125 Amps.
Dielectric Strength of 4,000 VAC.
Optical Isolation between Input & Output Must Turn-Off Voltage Max Input Current Max Reverse Protection Voltage 1 VDC 25 mA -32 VDC OUTPUT.
