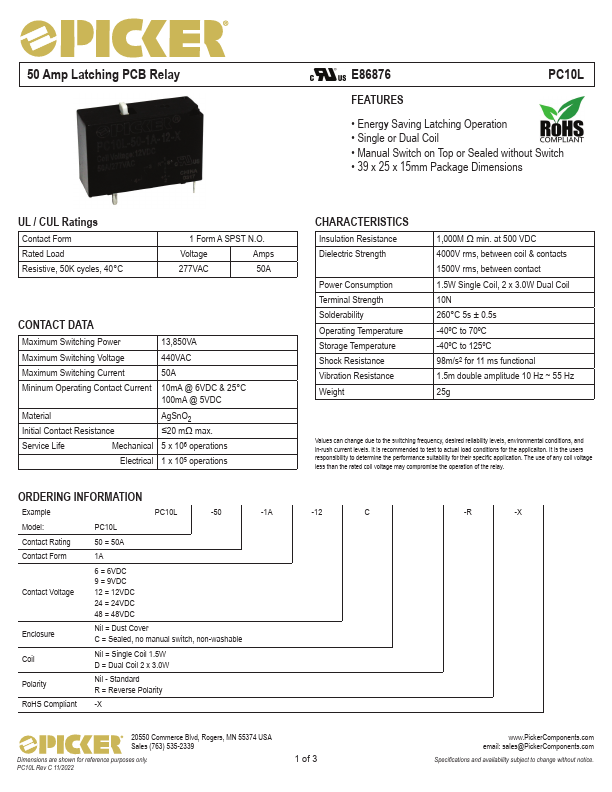

PC10L, PC10L-50 - 50 Amp Latching PCB Relay

Picker

Datasheet Details

Part number	PC10L, PC10L-50
Manufacturer	Picker
File Size	195.54 KB
Description	50 Amp Latching PCB Relay
Datasheet	PC10L-50-Picker.pdf
Note	This datasheet PDF includes multiple part numbers: PC10L, PC10L-50. Please refer to the document for exact specifications by model.

Energy Saving Latching Operation.
Single or Dual Coil.
Manual Switch on Top or Sealed without Switch.
39 x 25 x 15mm Package Dimensions UL / CUL Ratings Contact Form Rated Load Resistive, 50K cycles, 40°C 1 Form A SPST N. O. Voltage Amps 277VAC 50A.
