PC118 - General Purpose Relay

Features

  • 2, 3 or 4 Pole Contact Forms.
  • AC & DC Coils Available.
  • Available as Plug-In or PC Pins.
  • Available with Gold Plated Contacts.
  • Available with Top Mounting Flange.
  • Available with Push-To-Test Button.
  • Available Compatible with SC118 Series Socket.

📥 Download Datasheet

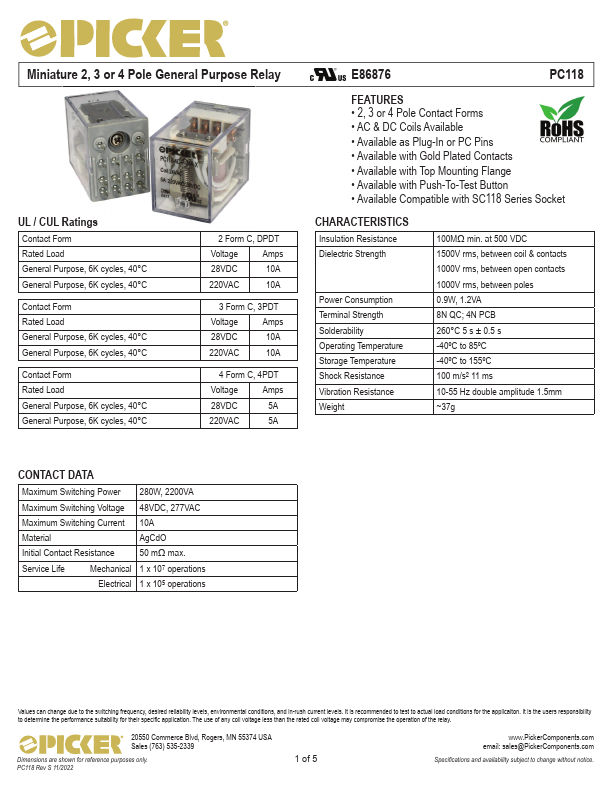

Datasheet preview – PC118

Datasheet Details

Part number PC118
Manufacturer Picker
File Size 300.65 KB
Description General Purpose Relay
Datasheet download datasheet PC118 Datasheet

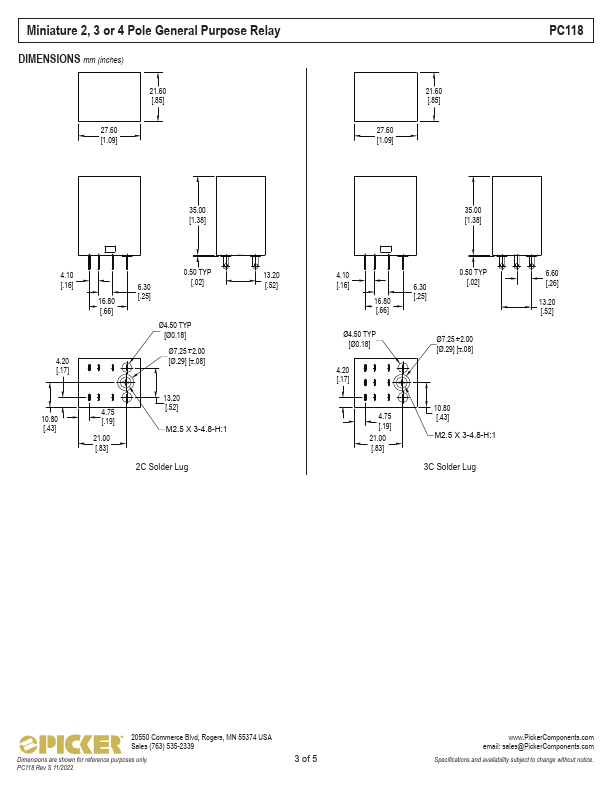

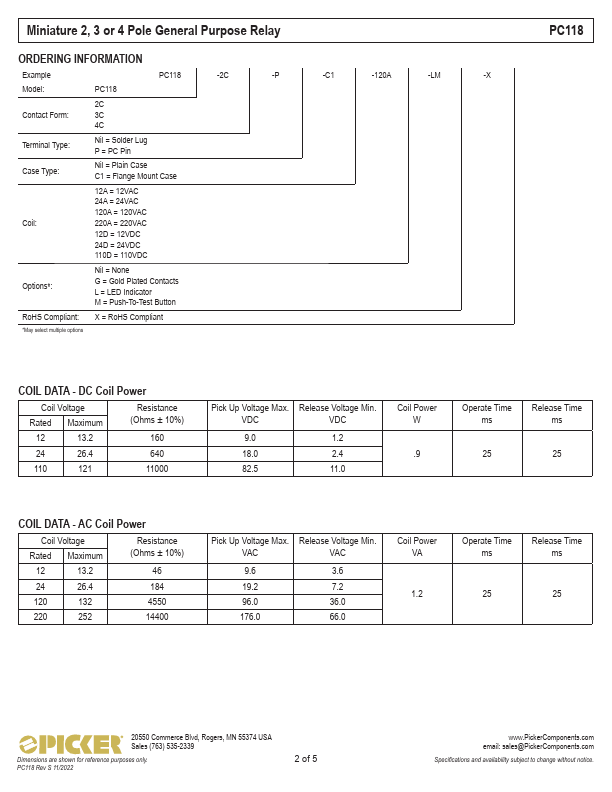

Additional preview pages of the PC118 datasheet.

📁 Similar Datasheet

  • PC110 - Long Creepage Distance Type Photocoupler (Sharp Electrionic Components)
  • PC110L - Long Creepage Distance Type Photocoupler (Sharp Electrionic Components)
  • PC111L - Long Creepage Distance Type Photocoupler (Sharp Electrionic Components)
  • PC112 - Step Up Converter for White LED Driver (SITI)
  • PC112L - Long Creepage Distance Type Photocoupler (Sharp Electrionic Components)
  • PC113 - Subminiature 12 & 20 Amp General Purpose Relay (Picker Components)
  • PC113 - Step Up Converter for White LED Driver (SITI)
  • PC113L - Long Creepage Distance Type Photocoupler (Sharp Electrionic Components)
  • PC100 - PC100 SDRAM MODULE Preliminary (Samsung semiconductor)
  • PC100-222-620 - 3.3V 2M x 64/72-Bit 1 BANK SDRAM Module 3.3V 4M x 64/72-Bit 2 BANK SDRAM Module (Siemens Semiconductor Group)
Other Datasheets by Picker

Full PDF Text Transcription

Click to expand full text
Miniature 2, 3 or 4 Pole General Purpose Relay UL / CUL Ratings Contact Form Rated Load General Purpose, 6K cycles, 40°C General Purpose, 6K cycles, 40°C Contact Form Rated Load General Purpose, 6K cycles, 40°C General Purpose, 6K cycles, 40°C Contact Form Rated Load General Purpose, 6K cycles, 40°C General Purpose, 6K cycles, 40°C 2 Form C, DPDT Voltage Amps 28VDC 10A 220VAC 10A 3 Form C, 3PDT Voltage Amps 28VDC 10A 220VAC 10A 4 Form C, 4PDT Voltage Amps 28VDC 5A 220VAC 5A E86876 PC118 FEATURES • 2, 3 or 4 Pole Contact Forms • AC & DC Coils Available • Available as Plug-In or PC Pins • Available with Gold Plated Contacts • Available with Top Mounting Flange • Available with Push-To-Test Button • Available Compatible with SC118 Series Socket CHARACTERISTICS Insulatio
