PHY6222 - Bluetooth LE 5.2 SOC

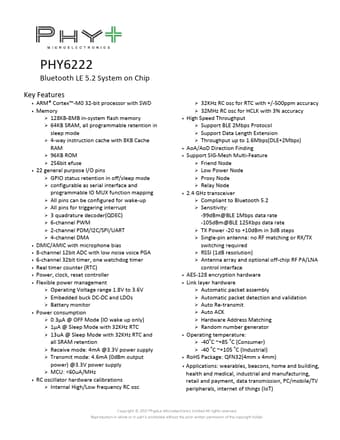

PHY6222 Datasheet Preview — Preview of PHY6222 PDF

Datasheet Details

Part number	PHY6222
Manufacturer	Phyplus
File Size	1.73 MB
Description	Bluetooth LE 5.2 SOC
Datasheet	PHY6222-Phyplus.pdf

PHY6222 Product details

Description

The following content has been added or updated: “3.6.1.5 UVLO” on page 11: Added the content of UVLO. “Operating Temperature” on cover: Added the temperature information of “Consumer” and “Industrial". “6 Operating Conditions” on page 31: Added the temperature specification of “Consumer” and “Industrial” in Table 19. Sensitivity updated: “-99dBm@1Mbps”, “-105dBm@BLE 125Kbps”, “-100dBm@500Kbps” and “-96dBm@2Mbps”

Features

ARM® Cortex™-M0 32-bit processor with SWD.
Memory.
128KB-8MB in-system flash memory.
64KB SRAM, all programmable retention in sleep mode.
4-way instruction cache with 8KB Cache RAM.
96KB ROM.
256bit efuse.
22 general purpose I/O pins.
GPIO status retention in off/sleep mode.
configurable as serial interface and programmable IO MUX function mapping.
All pins can be configured for wake-up.
All pins for triggering interrupt.
