PHY6212 - Bluetooth LE 5.2 SOC

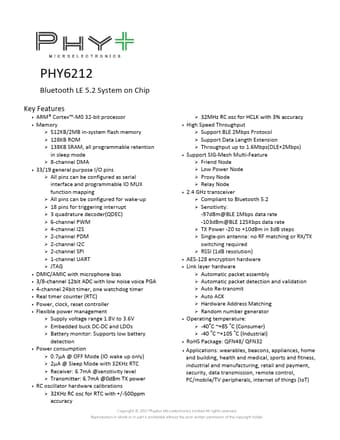

PHY6212 Datasheet Preview — Preview of PHY6212 PDF

Datasheet Details

Part number	PHY6212
Manufacturer	Phyplus
File Size	1.77 MB
Description	Bluetooth LE 5.2 SOC
Datasheet	PHY6212-Phyplus.pdf

PHY6212 Product details

Description

Added “GPIO DC Characteristics” 1. Added “Power consumption” in the home page 2. Added information about accuracy of RC osc in the home page Added “DMIC/AMIC Data Path” 1. Updated the information of “Ordering information” 2. Updated the information of “in-system flash memory” and “Power consumption” Corrected the information of “PHY6212 (QFN32) Pin Functions Pin2, 3, 4, 5, 7, 8” The following content has been added, updated or corrected: “Operating Temperature” on cover: Added th

Features

ARM® Cortex™-M0 32-bit processor.
Memory.
512KB/2MB in-system flash memory.
128KB ROM.
138KB SRAM, all programmable retention in sleep mode.
8-channel DMA.
33/19 general purpose I/O pins.
All pins can be configured as serial interface and programmable IO MUX function mapping.
All pins can be configured for wake-up.
18 pins for triggering interrupt.
3 quadrature decoder(QDEC).
6-channel PWM.
4-channel I2S.
2-channe.
