BB804 - VHF variable capacitance double diode

Description

The BB804 is a variable capacitance double diode with a common cathode, fabricated in planar technology, and encapsulated in the SOT23 small plastic SMD package.

Features

  • Selected capacitance range.
  • Small plastic SMD package.
  • C8: 26 pF; ratio: 1.7.
  • Low series resistance.

📥 Download Datasheet

Datasheet Details

Part number BB804
Manufacturer Philipss
File Size 58.78 KB
Description VHF variable capacitance double diode
Datasheet download datasheet BB804 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BB804 Silicon Epitaxial Planar Dual Capacitance Diode Vishay Telefunken
BB804 Silicon Variable Capacitance Diode Siemens Group
BB804 Silicon Variable Capacitance Diode Infineon Technologies AG
BB811 Silicon Variable Capacitance Diode Siemens Group
BB814 Silicon Epitaxial Planar Dual Capacitance Diode Vishay Telefunken

Other Datasheets by Philipss

Part Number Description
BB809 VHF variable capacitance diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

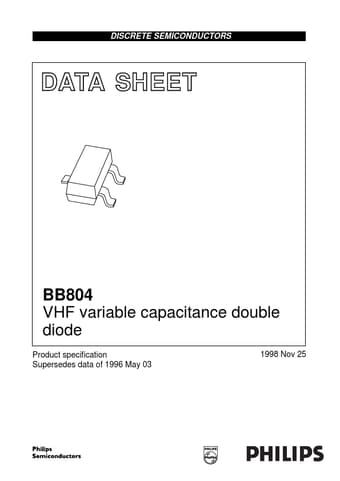

DISCRETE SEMICONDUCTORS DATA SHEET alfpage M3D088 BB804 VHF variable capacitance double diode Product specification Supersedes data of 1996 May 03 1998 Nov 25 Philips Semiconductors Product specification VHF variable capacitance double diode FEATURES • Selected capacitance range • Small plastic SMD package • C8: 26 pF; ratio: 1.7 • Low series resistance. APPLICATIONS • Electronic tuning in FM radio applications. DESCRIPTION The BB804 is a variable capacitance double diode with a common cathode, fabricated in planar technology, and encapsulated in the SOT23 small plastic SMD package. handbook, halfpage BB804 PINNING MARKING TYPE NUMBER BB804 BB804W CODE SF5 SF2 PIN 1 2 3 DESCRIPTION anode (a1) anode (a2) common cathode 3 3 1 2 1 2 MAM169 Fig.
