SAA2510 - Video CD VCD decoder

Philips

📥 Download Datasheet

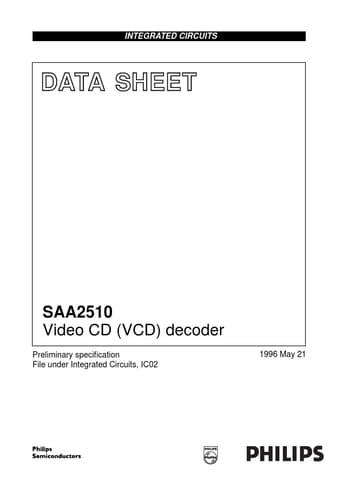

SAA2510 Datasheet Preview — Preview of SAA2510 PDF

Datasheet Details

Part number	SAA2510
Manufacturer	Philips
File Size	126.30 KB
Description	Video CD VCD decoder
Datasheet	SAA2510_PhilipsSemiconductors.pdf

SAA2510 Product details

Description

plastic quad ﬂat package; 100 leads (lead length 1.95 mm); body 14 × 20 × 2.7 mm; high stand-off height 2 APPLICATION Dedicated video CD players. EBU audio output, fully transparent from input to output in CD-DA mode and generated in MPEG mode Downloadable microcode for internal controllers Internal video timing generator Requires 40 MHz crystal for system clock generation Requires 27 MHz crystal or externa

Features

(With standard microcode loaded).
Decoding and display of MPEG1 video streams (constrained parameters).
Decoding of MPEG audio streams (layer II).
Decoding, storage (compressed) and display of high-resolution still pictures of 704 × 576 pixels.
Requires only 4 Mbits of external 70 ns DRAM.
Audio transparency mode for CD-DA discs.
On-screen display capability.
Play options:.
Play.
Stop.
Pause/continue.
