SAA2503 - MPEG2 audio decoder

Philips

📥 Download Datasheet

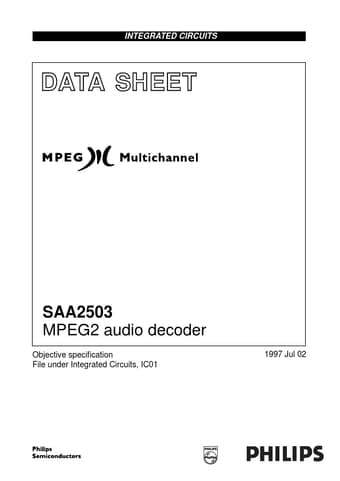

SAA2503 Datasheet Preview — Preview of SAA2503 PDF

Datasheet Details

Part number	SAA2503
Manufacturer	Philips
File Size	139.02 KB
Description	MPEG2 audio decoder
Datasheet	SAA2503_PhilipsSemiconductors.pdf

SAA2503 Product details

Description

plastic low proﬁle quad ﬂat package; 100 leads; body 14 x 14 x 1.4 mm APPLICATIONS SAA2503 This IC is mainly intended for use in Digital Versatile Disc (DVD) players.However it may also be used in any application that is able to accept an MPEG2 audio bitstreams such as: Set top boxes Multimedia PCs Digital television Next generation audio equipment.

Features

Single-chip MPEG2 multichannel audio decoder.
Decodes MPEG high quality audio:.
MPEG1 layer 2 (44.1 kHz).
MPEG2 multichannel layer 2 (48 kHz).
Supports pause frames.
Outputs 2 channels.
Quasi surround down-mixing for Left and Right Dolby surround channel (Lt and Rt).
Stereo down-mixing for stereo reproduction.
Stereo signal selection.
Single channel down-mixing.
Karaoke modes.
Linear PCM.
